558269 Festo Pneumatic Tubing

558269 on Powermatic Associates
Festo

Part#:558269

Alt. Part#:PUN-H-16X2,5-NT-100

Manufacturer:Festo

Category:Pneumatic Tubing

Product Lifecycle:Active

Product description

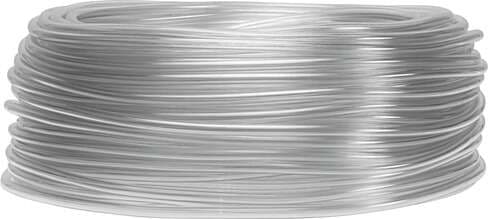

plastic tubing PUN-H-16X2,5-NT-100 Approved for use in food processing (hydrolysis resistant) Outside diameter: 16 mm, Bending radius relevant for flow rate: 88 mm, Inside diameter: 11 mm, Min. bending radius: 38 mm, Tubing characteristics: Suitable for e

Product Details

  • Bending radius relevant for flow rate
    88 mm
  • For use in the food industry
    See supplementary material information
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Outside diameter
    16 mm
  • Type code
    PUN-H
  • Certificate issuing authority
    B 013277 0506 00
  • Color
    Natural
  • Tubing characteristics
    Suitable for energy chains in applications with high cycle rates
  • Min. bending radius
    38 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Certification
    German Technical Control Board (TÜV)
  • Material of pneumatic tubing
    TPE-U(PU)
  • Temperature-dependent operating pressure
    -0.95 bar ... 10 bar
  • Ambient temperature
    -35 °C ... 60 °C
  • Pneumatic connection
    For plug connection outside diameter 16 mm
  • Pneumatic tubing test conditions
    Suitability for energy chains: >5 million cycles as per FN 942021
  • Inside diameter
    11 mm
  • Material fire test
    UL94 HB
  • Product weight by length
    0.123 kg/m
  • Shore hardness
    D 52 +/-3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

558269 Related Documents

558269 DataSheet.pdf
