558100 Festo Actuator Accessories
Part#:558100
Alt. Part#:DWC-50-125-Y-AB
Manufacturer:Festo
Category:Actuator Accessories
Product Lifecycle:Active
Product description

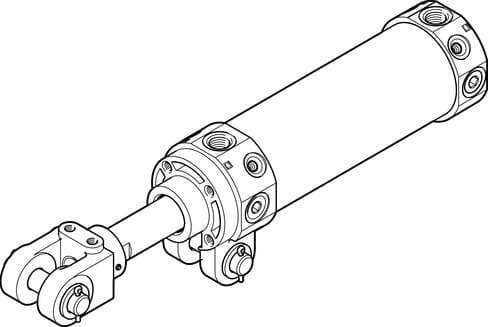

hinge cylinder DWC-50-125-Y-AB Stroke: 125 mm, Piston diameter: 50 mm, Piston rod thread: M16x1,5, Distance of rod clevis to swivel mounting: 16,5 mm, Cushioning: PPV: Pneumatic cushioning adjustable at both ends
Product Details
- Piston diameter 50 mm
- Cushioning Pneumatic cushioning, adjustable at both ends
- Velocity control Integrated flow control at both ends
- Theoretical force at 6 bar, retracting 990 N
- Additional weight per 10 mm stroke 37 g
- Alternative connections See product drawing
- Wide rod clevis/swivel mounting 16.5 mm
- Mounting position Any
- Mode of operation Double-acting
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Basic weight with 0 mm stroke 1338 g
- Type of mounting With swivel mounting on bearing cap With accessories
- Note on materials RoHS-compliant
- Design Piston Cylinder barrel
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Impact energy in the end positions 0.7 J
- Moving mass at 0 mm stroke 664 g
- Rod clevis material Cast steel Tempered steel
- Piston rod thread M16x1.5
- Position sensing For proximity sensor
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Cushioning length 20 mm
- Theoretical force at 6 bar, advancing 1178 N
- Pneumatic connection Rc1/4
- Seals material NBR
- Material of cylinder barrel Wrought aluminum alloy Anodized
- Stroke 125 mm
- Type code DW
- Piston rod end External thread with rod clevis
- Operating pressure 1 bar ... 10 bar
- Ambient temperature -10 °C ... 60 °C
- Additional moving mass per 10 mm stroke 25 g
- Cover material Die-cast aluminum Anodized
- Scraper material Bronze
- Piston rod material Tempered steel Hard-chrome-plated
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
