552816 Festo Sensor Accessories

552816 on Powermatic Associates
Festo

Part#:552816

Alt. Part#:SOOC-TB-H-M4-2-R40

Manufacturer:Festo

Category:Sensor Accessories

Product Lifecycle:Active

Product description

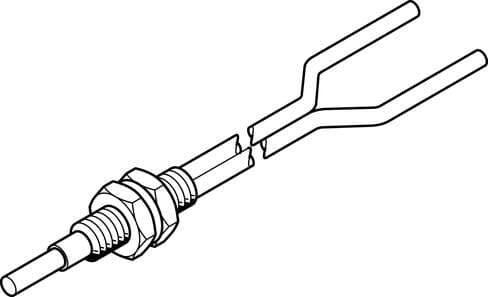

Light guide SOOC-TB-H-M4-2-R40 Suitable for SOE4 fibre-optic units. Materials note: Contains PWIS substances, Measurement method: Through-beam sensor, Minimal object diameter: 0,2 mm, Fibre-optic cable - special feature: Large working range, Working range

Product Details

  • Minimum object diameter
    0.2 mm
  • Ambient temperature
    -55 °C ... 70 °C
  • Outside diameter
    2.2 mm
  • Method of measurement
    Through-beam sensor
  • Working range
    650 mm
  • Max. tightening torque
    2 Nm
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    Contains paint-wetting impairment substances
  • Special feature of fibre-optic cable
    Large range
  • Min. bending radius
    40 mm
  • Degree of protection
    IP66
  • Head size
    M4
  • Housing material
    High-alloy stainless steel
  • Type code
    SOOC
  • Fibre-optic cable length
    2 m
  • Fiber-optic cable
    PE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
