552809 Festo Sensor Accessories

552809 on Powermatic Associates
Festo

Part#:552809

Alt. Part#:SOOC-DS-M6-2-R25-T1

Manufacturer:Festo

Category:Sensor Accessories

Product Lifecycle:Active

Product description

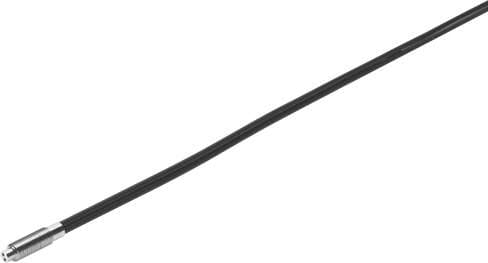

Light guide SOOC-DS-M6-2-R25-T1 Suitable for SOE4 fibre-optic units. Materials note: Contains PWIS substances, Measurement method: Diffuse reflection sensor, Minimal object diameter: 0,1 mm, Fibre-optic cable - special feature: High temperature, Working r

Product Details

  • Method of measurement
    Reflection light sensor
  • Head size
    M6
  • Housing material
    High-alloy stainless steel
  • Minimum object diameter
    0.1 mm
  • Fibre-optic cable length
    2 m
  • Fiber-optic cable
    PE
  • Working range
    150 mm
  • Min. bending radius
    25 mm
  • Type code
    SOOC
  • Special feature of fibre-optic cable
    High temperature
  • Max. tightening torque
    3 Nm
  • Degree of protection
    IP66
  • Note on materials
    Contains paint-wetting impairment substances
  • Ambient temperature
    -55 °C ... 115 °C
  • Outside diameter
    2.2 mm
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

552809 Related Documents

552809 DataSheet.pdf

Manufacturer warranty

552809 Festo
