552803 Festo Sensor Accessories

552803 on Powermatic Associates
Festo

Part#:552803

Alt. Part#:SOOC-DS-P-M3-2-R10-S4

Manufacturer:Festo

Category:Sensor Accessories

Product Lifecycle:Active

Product description

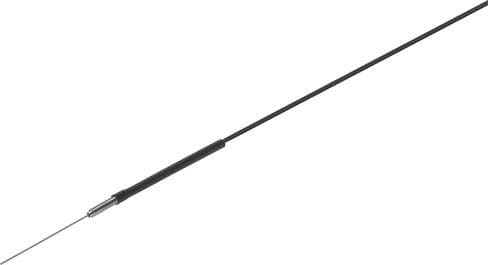

Light guide SOOC-DS-P-M3-2-R10-S4 Suitable for SOE4 fibre-optic units. Materials note: Contains PWIS substances, Measurement method: Diffuse reflection sensor, Minimal object diameter: 0,05 mm, Fibre-optic cable - special feature: Precision, Working range

Product Details

  • Type code
    SOOC
  • Special feature of fibre-optic cable
    Precision
  • Head size
    M3
  • Fiber-optic cable
    PE
  • Note on materials
    Contains paint-wetting impairment substances
  • Working range
    12 mm
  • Min. bending radius
    10 mm
  • Outside diameter
    1.25 mm
  • Minimum object diameter
    0.05 mm
  • Ambient temperature
    -55 °C ... 70 °C
  • Sleeve length
    40 mm
  • Degree of protection
    IP66
  • Method of measurement
    Reflection light sensor
  • Fibre-optic cable length
    2 m
  • Max. tightening torque
    1 Nm
  • Housing material
    High-alloy stainless steel
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
