552142 Festo Air Gap Sensors

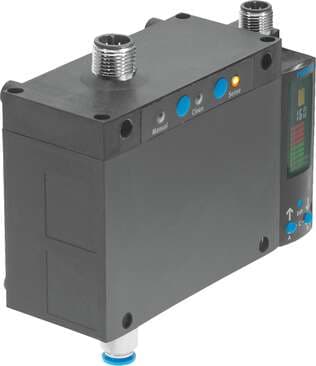

Festo 552142 air gap sensor SOPA-CM1H-R1-WQ6-2N-M12 For contactless distance sensing. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EM
Festo

Part#:552142

Manufacturer:Festo

Alt. Part#:SOPA-CM1H-R1-WQ6-2N-M12

Product Lifecycle:Active

Get a quick Quote!

air gap sensor SOPA-CM1H-R1-WQ6-2N-M12 For contactless distance sensing. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EM

About the manufacturer: Festo is one of the manufacturers that offers Air Gap Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 552142 Festo price in the box on the right side or send a quick quote.

Product Details

  • Electrical connection 1, type of mounting
    Screw-type lock
  • Detected variable
    Gap
  • Measuring principle
    Pneumatic
  • Electrical connection 1, connection type
    Plug
  • KC characters
    KC EMC
  • Symbol
    00995373
  • Operating pressure
    4 bar ... 7 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Max. output current
    100 mA
  • Pneumatic connection
    QS-6
  • Display type
    Illuminated LCD, multi-color
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Repetition accuracy in ± µm
    2.5 µm
  • Sensing range
    20 µm ... 200 µm
  • Switching element function
    N/C contact/N/O contact switchable
  • Product weight
    510 g
  • Degree of protection
    IP65
  • Type code
    SOPA
  • Electrical connection for input 1, connection pattern
    00991172
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Switching output
    2xNPN
  • Switching function
    Window comparator Threshold value with variable hysteresis
  • DC operating voltage range
    22.8 V ... 26.4 V
  • Protection against tampering
    Electronic interlock
  • Electrical connection 1, connection technology
    M12x1 A-coded as per EN 61076-2-101
  • Electrical connection 1, number of pins/wires
    5
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU RoHS directive
  • Supply pressure
    0.8 bar ... 1.6 bar
  • Ambient temperature
    0 °C ... 50 °C
  • Short-circuit protection
    yes
  • Type of mounting
    Optionally: With wall/surface bracket
  • Housing material
    Aluminum, anodized PA-reinforced
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Reverse polarity protection
    for all electrical connections
  • Setting options
    Teach-in Via display and pushbuttons

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 552142 Specs

552142 552142 DataSheet.pdf

Manufacturer warranty
