552140 Festo Air Gap Sensors

Name: 552140
Brand: Festo

Part#:552140

Alt. Part#:SOPA-CM3H-R1-WQ6-2P-M12

Manufacturer:Festo

Category:Air Gap Sensors

Product Lifecycle:Active

Product description

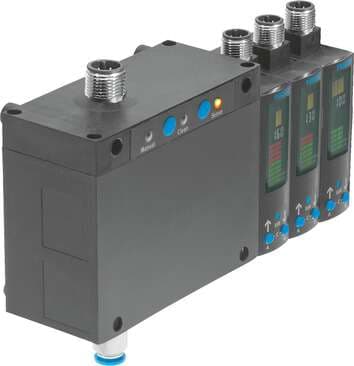

air gap sensor SOPA-CM3H-R1-WQ6-2P-M12 For contactless distance sensing. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EM

Product Details

Electrical connection 1, type of mounting
Screw-type lock
Electrical connection for input 1, connection pattern
00991172
Symbol
00995372
Sensing range
20 µm ... 200 µm
Switching function
Window comparator Threshold value with variable hysteresis
Short-circuit protection
yes
Type of mounting
Optionally: With wall/surface bracket
Degree of protection
IP65
Electrical connection 1, connection technology
M12x1 A-coded as per EN 61076-2-101
Repetition accuracy in ± µm
2.5 µm
Measuring principle
Pneumatic
Switching output
2xPNP
Max. output current
100 mA
Housing material
Aluminum, anodized PA-reinforced
Setting options
Teach-in Via display and pushbuttons
Electrical connection 1, connection type
Plug
KC characters
KC EMC
Electrical connection 1, number of pins/wires
5
Certification
RCM compliance mark c UL us - Recognized (OL)
Operating pressure
4 bar ... 7 bar

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Switching element function

N/C contact/N/O contact switchable

Product weight

630 g

Pneumatic connection

QS-6

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Detected variable

Gap

CE marking (see declaration of conformity)

As per EU EMC directive As per EU RoHS directive

Supply pressure

0.8 bar ... 1.6 bar

Ambient temperature

0 °C ... 50 °C

DC operating voltage range

22.8 V ... 26.4 V

Display type

Illuminated LCD, multi-color

Type code

SOPA

Note on materials

Free of copper and PTFE RoHS-compliant

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Reverse polarity protection

for all electrical connections

Protection against tampering

Electronic interlock

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

552140 Related Documents

552140 DataSheet.pdf

Manufacturer warranty

552140 Festo
