552130 Festo Air Gap Sensors

Name: 552130
Brand: Festo

Part#:552130

Manufacturer:Festo

Category:Air Gap Sensors

Alt. Part#:SOPA-CM1H-R1-HQ6-2P-M12

Product Lifecycle:Active

Get a quick Quote!

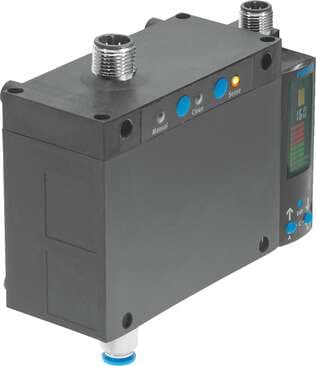

air gap sensor SOPA-CM1H-R1-HQ6-2P-M12 For contactless distance sensing. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EM

About the manufacturer: Festo is one of the manufacturers that offers Air Gap Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 552130 Festo price in the box on the right side or send a quick quote.

Product Details

Electrical connection 1, type of mounting
Screw-type lock
Electrical connection 1, number of pins/wires
5
Certification
RCM compliance mark c UL us - Recognized (OL)
Operating pressure
4 bar ... 7 bar
Ambient temperature
0 °C ... 50 °C
Switching element function
N/C contact/N/O contact switchable
Type code
SOPA
KC characters
KC EMC
Measuring principle
Pneumatic
Supply pressure
0.8 bar ... 1.6 bar
Switching function
Window comparator Threshold value with variable hysteresis
Short-circuit protection
yes
Pneumatic connection
QS-6
Setting options
Teach-in Via display and pushbuttons
Protection against tampering
Electronic interlock
Electrical connection 1, connection type
Plug
Electrical connection for input 1, connection pattern
00991172
Symbol
00995372
Note on materials
Free of copper and PTFE RoHS-compliant
Switching output
2xPNP

DC operating voltage range

22.8 V ... 26.4 V

Housing material

Aluminum, anodized PA-reinforced

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Electrical connection 1, connection technology

M12x1 A-coded as per EN 61076-2-101

Detected variable

Gap

Sensing range

20 µm ... 200 µm

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Max. output current

100 mA

Type of mounting

Optionally: With wall/surface bracket

Display type

Illuminated LCD, multi-color

Repetition accuracy in ± µm

2.5 µm

CE marking (see declaration of conformity)

As per EU EMC directive As per EU RoHS directive

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Reverse polarity protection

for all electrical connections

Product weight

510 g

Degree of protection

IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
