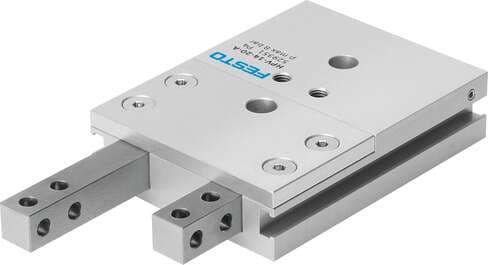

550908 Festo Pneumatic Components

Product Details

• Max. tappet play Sx
  0.05 mm
• Max. gripper jaw angular backlash az
  0.262 deg
• Stroke
  10 mm
• Max. gripper jaw angular backlash ay
  0.2 deg
• Position sensing
  For proximity sensor
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Max. mass per external gripper finger
  56 g
• Alternative connections
  M3
• Piston diameter
  10 mm
• Max. tappet play Sz
  0.03 mm
• Type code
  HPV
• Mounting position
  Any
• Symbol
  00991914
• Operating pressure
  3 bar ... 8 bar
• Max. force on finger Fz static
  75 N
• Max. static moment at finger
  3 Nm
• Product weight
  135 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Max. interchangeability
  0.3 mm
• Max. gripper jaw angular backlash
  0.12 deg
External finger mounting
Through-hole
Mode of operation
Double-acting
Protection against torsion/guide
Square guide
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. static moment Mr at finger
3 Nm
Theoretical force at 6 bar, retracting
35 N
Type of mounting
Optionally: Via through-hole and centering sleeve
Cushioning
No cushioning
Half pulse
26.5 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Max. static moment Mx at finger
3 Nm
Design
Twin piston Anti-twist feature
Cycle time
52.5 ms
Ambient temperature
5 °C ... 60 °C
Theoretical force at 6 bar, advancing
45 N
Pneumatic connection
M5
