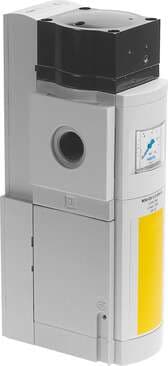

548715 Festo Compressed Air Preparation Units

Product Details

• Note on forced dynamization
  Switching frequency at least once a month
• Position sensing principle
  Piston magnet principle
• Operating pressure
  3.5 bar ... 10 bar
• Symbol
  00995704
• On switching time
  130 ms
• Permissible voltage fluctuations
  +/- 10 %
• Temperature of medium
  -10 °C ... 50 °C
• Degree of protection
  IP65 With plug socket
• Mounting position
  Any
• Electrical connection
  9-pin Sub-D
• KC characters
  KC EMC
• Type code
  MS6-SV
• Design
  Piston seat
• Pilot air supply port
  Internal
• Manual override
  None
• Valve function
  3/2, closed, monostable Pressure build-up function
• Switching time off
  40 ms
• Nominal operating voltage DC
  24 V
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Note on materials
  RoHS-compliant
Certificate issuing authority
IFA 1001180
Housing material
Die-cast aluminum
For use in the food industry
See supplementary material information
Safety function
Exhausting Prevention of unexpected start-up (pressurization)
Underlap
no
Sealing principle
Soft
Reset method
Mechanical spring
Standard nominal flow rate
4300 l/min
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Certification
RCM compliance mark
Product weight
2000 g
Pneumatic connection 2
G1/2
Series
MS
Width dimension
62 mm
Actuation type
Electrical
Exhaust air function
Without flow control option
Type of control
Pilot-controlled
b-value
0.21
Max. switching frequency
1 Hz
Signal status display
LED Floating contact
Storage temperature
-10 °C ... 50 °C
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Type of mounting
Optionally: With accessories
Pneumatic connection 3
G1
Piston rod material
High-alloy stainless steel
Size
6
Safety integrity level (SIL)
Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3
Performance Level (PL)
Exhaust/up to category 4, performance level e Avoidance of unexpected start-up (pressurization)/up to category 4, performance level e
Conforms to standard
DIN EN ISO 13849-1
Pressure gauge
with pressure gauge
C value
19.3 l/sbar
Standard flow rate exhaust 6-> 0 bar
9000 l/min
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 50 °C
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
CE marking (see declaration of conformity)
As per EU EMC directive as per EU machinery directive
Pneumatic connection 1
G1/2
Seals material
NBR

Related documents 548715 Specs
