Powermatic Associates Logo

546536 Festo Compressed Air Preparation Accessories

546536 on Powermatic Associates
Festo

Part#:546536

Alt. Part#:PBL-1/4-D-MIDI-L-NPT:LI

Manufacturer:Festo

Category:Compressed Air Preparation Accessories

Product Lifecycle:Active

Product description

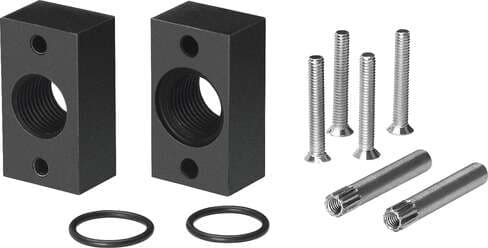

sub-base PBL-1/4-D-MIDI-L-NPT:LI For series D service units Size: Midi, Series: D, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 145 g

Product Details

  • Series
    D
  • Pneumatic connection 1
    NPT1/4-18
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Type code
    PBL
  • Material of sub-base
    Die-cast zinc
  • Size
    Midi
  • Temperature of medium
    -10 °C ... 60 °C
  • Sealing ring material
    NBR
  • Product weight
    145 g
  • Material of screws
    Steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

546536 Related Documents

546536 DataSheet.pdf

Similar products from: Festo Compressed Air Preparation Accessories

526067 on Powermatic Associates

526067

Festo

Sub-base-SET MS4N-AQP From the MS series, with NPT thread. Size: 4, Series: MS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 128 g

1 in stock
532798 on Powermatic Associates

532798

Festo

module connector MS4-MV Size: 4, Series: MS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 36 g

6 in stock
526078 on Powermatic Associates

526078

Festo

Sub-base-SET MS6N-AQR From the MS series, with NPT thread. Size: 6, Series: MS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 300 g

15 in stock
543489 on Powermatic Associates

543489

Festo

module connector MS4-6-AMV Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 77 g, Materials note: Conforms to RoHS, Material of connecting plate: Aluminium die cast

1 in stock
529023 on Powermatic Associates

529023

Festo

connecting kit HRBC-D-MIDI For pressure regulator combination LRB / LRBS Product weight: 188 g

33 in stock

Manufacturer warranty

546536 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 546536 with other Compressed Air Preparation Accessories products

Series

Pneumatic connection 1

Corrosion resistance clas...

Note on materials

Type code

Material of sub-base

Size

Temperature of medium

Sealing ring material

Product weight

Selected product

546536
Backordered
546536
Festo

sub-base PBL-1/4-D-MIDI-L-NPT:LI For series D service units Size: Midi, Series: D, Corrosion resista...

SeriesD

Pneumatic connection 1NPT1/4-18

Corrosion resistance class (CRC)2 - Moderate corrosion stres...

Note on materialsFree of copper and PTFE RoHS...

Type codePBL

Material of sub-baseDie-cast zinc

SizeMidi

Temperature of medium-10 °C ... 60 °C

Sealing ring materialNBR

Product weight145 g

526067
1 in stock
526067
Festo

Sub-base-SET MS4N-AQP From the MS series, with NPT thread. Size: 4, Series: MS, Corrosion resistance...

SeriesMS

Pneumatic connection 13/8 NPT

Corrosion resistance class (CRC)2 - Moderate corrosion stres...

Note on materialsFree of copper and PTFE RoHS...

Type codeMS4-AGP

Material of sub-baseDie-cast aluminum

Size4

Temperature of medium-10 °C ... 60 °C

Sealing ring material-

Product weight128 g

532798
6 in stock
532798
Festo

module connector MS4-MV Size: 4, Series: MS, Corrosion resistance classification CRC: 2 - Moderate c...

SeriesMS

Pneumatic connection 1-

Corrosion resistance class (CRC)2 - Moderate corrosion stres...

Note on materialsFree of copper and PTFE RoHS...

Type codeMS4-MV

Material of sub-base-

Size4

Temperature of medium-10 °C ... 60 °C

Sealing ring material-

Product weight36 g

About the manufacturer

Festo

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Accessories for preparing compressed air are comprised of systems and components that enhance the reliability of processes, the availability of machines, and the lifespan of compressed air systems. These accessories guarantee that the compressed air is devoid of particles, water, and oils, and maintains the appropriate level of purity, flow rate, and operating pressure.
