546527 Festo Compressed Air Preparation Accessories

546527 on Powermatic Associates
Festo

Part#:546527

Alt. Part#:PBL-1/2-D-MIDI-R-NPT

Manufacturer:Festo

Category:Compressed Air Preparation Accessories

Product Lifecycle:Active

Product description

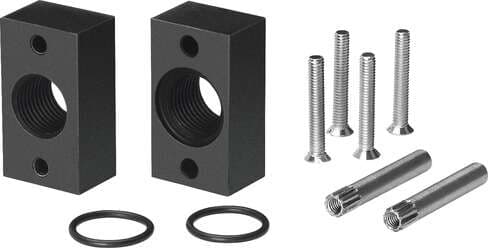

sub-base PBL-1/2-D-MIDI-R-NPT For series D service units Size: Midi, Series: D, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 120 g

Product Details

  • Product weight
    120 g
  • Sealing ring material
    NBR
  • Type code
    PBL
  • Temperature of medium
    -10 °C ... 60 °C
  • Material of screws
    Steel
  • Size
    Midi
  • Material of sub-base
    Die-cast zinc
  • Series
    D
  • Pneumatic connection 1
    NPT1/2-14
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
