546525 Festo Compressed Air Preparation Accessories

546525 on Powermatic Associates
Festo

Part#:546525

Alt. Part#:PBL-3/8-D-MINI-R-NPT

Manufacturer:Festo

Category:Compressed Air Preparation Accessories

Product Lifecycle:Active

Product description

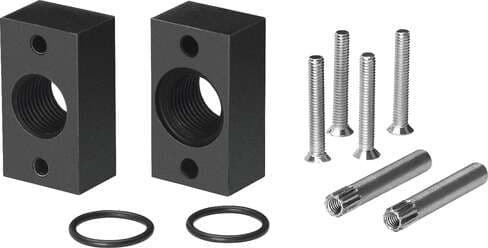

sub-base PBL-3/8-D-MINI-R-NPT For series D service units Size: Mini, Series: D, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 50 g

Product Details

  • Type code
    PBL
  • Product weight
    50 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Size
    Mini
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 1
    NPT3/8-18
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Material of sub-base
    Die-cast zinc
  • Material of screws
    Steel
  • Series
    D
  • Sealing ring material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
