543412 Festo Pneumatic Components

543412 on Powermatic Associates
Festo

Part#:543412

Alt. Part#:VABE-S6-1LF-C-M1-C36M

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

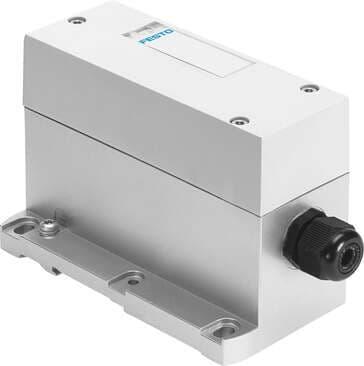

multi-pin node VABE-S6-1LF-C-M1-C36M For valve terminals VTSA and VTSA-F. Based on the standard: EN 61984, Assembly position: Any, Max. number of valve positions: (* 16 with bistable valves, * 32 with monostable valves), Max. residual current: 6 A, Nomina

Product Details

  • Surge resistance
    1.5 kV
  • Electrical connection
    Socket/terminal strip
  • Type code
    VABE
  • Current rating at 40°C
    1 A
  • Ambient temperature
    -5 °C ... 50 °C
  • Housing material
    Die-cast aluminum
  • Max. residual current
    6 A
  • Nominal operating voltage DC
    24 V
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Product weight
    545 g
  • Based on norm
    EN 61984
  • Max. no. of valve positions
    16 for bistable pneumatic valves 32 for monostable pneumatic valves
  • Contamination level
    3
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Electrical actuation
    Multi-pin
  • Mounting position
    Any
  • Nominal operating voltage AC
    110 V
  • Permissible voltage fluctuations
    +/- 10 %
  • Degree of protection
    IP65 NEMA 4
  • Cover material
    PA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

543412 Related Documents

543412 DataSheet.pdf
