543253 Festo Stop Valves (non-return)

Name: 543253
Brand: Festo

Part#:543253

Alt. Part#:HGL-1/8-1/8-B

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

Piloted check valve HGL-1/8-1/8-B With sealing ring OL. Valve function: piloted non-return function, Pneumatic connection, port 1: G1/8, Pneumatic connection, port 2: G1/8, Type of actuation: pneumatic, Pilot air port 21: G1/8

Product Details

Maritime classification
See certificate
Valve function
Unlockable non-return function
Actuation type
Pneumatic
Mounting position
Any
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Note on materials
Free of copper and PTFE RoHS-compliant
Swivel joint material
Die-cast zinc
Pilot pressure MPa
0.2 MPa ... 1 MPa
Type of mounting
Screw-in With external thread
Symbol
00991456
Storage temperature
-10 °C ... 60 °C
Non-return collar material
NBR
Type code
HGL
Operating pressure
0.5 bar ... 10 bar
Pilot air port 21
G1/8
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-10 °C ... 60 °C
Product weight
26.2 g

Seals material

NBR

Pneumatic connection 2

G1/8

Ambient temperature

-10 °C ... 60 °C

Standard nominal flow rate 1->2 (6-5)

300 l/min

Tolerance for nominal tightening torque

± 10%

Releasing ring material

POM

Pilot pressure psi

29 psi ... 145 psi

Pneumatic connection 1

G1/8

Pilot pressure

2 bar ... 10 bar

Standard flow rate 1->2 (6-0)

430 l/min

Nominal tightening torque

3.5 Nm

Hollow bolt material

Wrought aluminum alloy Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

543253 Related Documents

543253 DataSheet.pdf

Similar products from: Festo Stop Valves (non-return)

564840

Festo

one-way flow control valve GRLA-10-32-UNF-QB-5/32-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-5/32, Pneumatic connection, port 2: 10-32 UNF-2A, Type of actuation: manual, Adjusting element: Slotted h

8 in stock

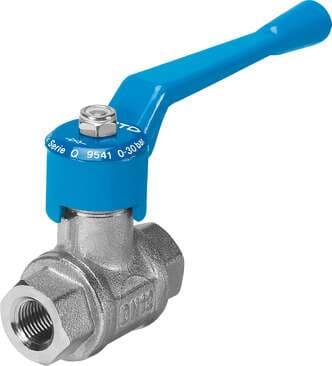

9543

Festo

ball valve QH-1/2 Manuel brass ball valve with ISO 228 thread. Valve function: 2/2 bistable, Pneumatic connection, port 1: G1/2, Pneumatic connection, port 2: G1/2, Type of actuation: manual, Mounting type: Line installation

836 in stock

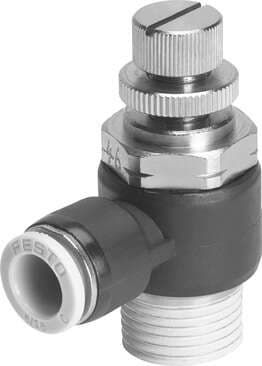

534656

Festo

one-way flow control valve GRLA-1/8-QB-5/32-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-5/32, Pneumatic connection, port 2: 1/8 NPT, Type of actuation: manual, Adjusting element: Slotted head screw

8 in stock

534665

Festo

one-way flow control valve GRLA-3/8-QB-5/16-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-5/16, Pneumatic connection, port 2: 3/8 NPT, Type of actuation: manual, Adjusting element: Slotted head screw

3 in stock

534661

Festo

one-way flow control valve GRLA-1/4-QB-1/4-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-1/4, Pneumatic connection, port 2: 1/4 NPT, Type of actuation: manual, Adjusting element: Slotted head screw

10 in stock

564842

Festo

one-way flow control valve GRLA-10-32-UNF-QB-1/4-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-1/4, Pneumatic connection, port 2: 10-32 UNF-2A, Type of actuation: manual, Adjusting element: Slotted hea

6 in stock

Manufacturer warranty

543253 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 543253 with other Stop Valves (non-return) products

Maritime classification

Valve function

Actuation type

Mounting position

Corrosion resistance clas...

Pilot medium

Note on materials

Swivel joint material

Pilot pressure MPa

Type of mounting

Selected product

Backordered

543253

Festo

Piloted check valve HGL-1/8-1/8-B With sealing ring OL. Valve function: piloted non-return function,...

Maritime classificationSee certificate

Valve functionUnlockable non-return functi...

Actuation typePneumatic

Mounting positionAny

Corrosion resistance class (CRC)2 - Moderate corrosion stres...

Pilot mediumCompressed air as per ISO 85...

Note on materialsFree of copper and PTFE RoHS...

Swivel joint materialDie-cast zinc

Pilot pressure MPa0.2 MPa ... 1 MPa

Type of mountingScrew-in With external threa...

2 in stock

530040

Festo

Piloted check valve HGL-1/8-QS-6 With sealing ring OL, with QS push-in fitting. Valve function: pilo...

Maritime classificationSee certificate

Valve functionUnlockable non-return functi...

Actuation typePneumatic

Mounting position-

Corrosion resistance class (CRC)-

Pilot medium-

Note on materials-

Swivel joint material-

Pilot pressure MPa0.2 MPa ... 1 MPa

Type of mountingScrew-in With external threa...

1 in stock

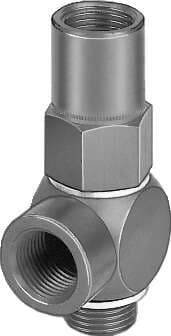

34877
