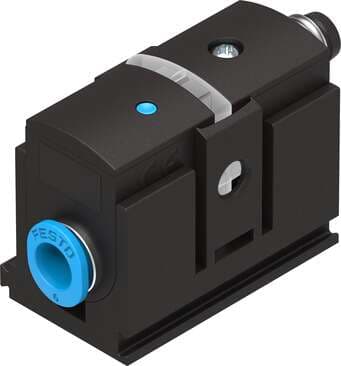

542891 Festo Pressure Sensors

Product Details

• KC characters
  KC EMC
• Note on materials
  RoHS-compliant
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Temperature co-efficient in ± %FS/K
  0.05 %FS/K
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Pressure measuring range initial value
  0 bar
• Information on operating and pilot media
  Operation with oil lubrication possible
• DC operating voltage range
  15 V ... 30 V
• Pneumatic connection
  QS-6
• Degree of protection
  IP40
• Pressure measuring range end value
  10 bar
• Ambient temperature
  0 °C ... 50 °C
• Switching element function
  N/O contact
• Reverse polarity protection
  for all electrical connections
• Housing material
  PA POM
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type code
  SDE5
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Measured variable
  Relative pressure
• Temperature of medium
  0 °C ... 50 °C
Repetition accuracy in ± %FS
0.3 %FS
Max. output current
100 mA
Type of mounting
With accessories
Setting range threshold value
0 % ... 100 %
Symbol
00991164
Method of measurement
Piezoresistive pressure sensor
Switching output
PNP
Short-circuit protection
yes
Mounting position
Any
Product weight
19 g
Switching function
Threshold value with variable hysteresis
Electrical connection
3-pin Round design
Switching status indication
LED yellow
