541682 Festo Compressed Air Preparation Units

541682 on Powermatic Associates
Festo

Part#:541682

Alt. Part#:MS12N-FRM-G

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

branching module MS12N-FRM-G To distribute compressed air without non-return function. Assembly position: Any, Design structure: Branching module, Operating pressure: 0 - 20 bar, Standard nominal flow rate in main flow direction 1->2: 25000 - 42000 l/min,

Product Details

  • Mounting position
    Any
  • Standard nominal flow rate in main flow direction 1 -> 2
    25000 l/min ... 42000 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    3000 g
  • Housing material
    Die-cast aluminum
  • Type code
    MS12N-FRM
  • Operating pressure
    0 bar ... 20 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-]
  • Pneumatic connection 1
    Battery module
  • Note on materials
    Free of copper and PTFE
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 3
    2 NPT
  • Symbol
    00991510
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    Battery module
  • Design
    Branching module
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 4
    1 NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

541682 Related Documents

541682 DataSheet.pdf

Similar products from: Festo Compressed Air Preparation Units

162680 on Powermatic Associates

162680

Festo

lubricator LOE-3/8-D-MINI With metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 45 cm3

1 in stock
529186 on Powermatic Associates

529186

Festo

filter regulator MS6-LFR-1/2-D7-CRV-AS Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: M

9 in stock
162684 on Powermatic Associates

162684

Festo

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

2 in stock
530506 on Powermatic Associates

530506

Festo

fine filter MS6-LFM-1/2-BRV 1 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Series: MS, Size: 6, Design structure: Fibre filter, Grade of filtration: 1 µm, Condensate drain: fully aut

26 in stock
529609 on Powermatic Associates

529609

Festo

filter MS6-LF-1/2-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully autom

15 in stock
531229 on Powermatic Associates

531229

Festo

filter regulator MS4N-LFR-1/4-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 4, Series: MS, Ac

5 in stock

Manufacturer warranty

541682 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 541682 with other Compressed Air Preparation Units products

Mounting position

Standard nominal flow rat...

Corrosion resistance clas...

Product weight

Housing material

Type code

Operating pressure

Operating medium

Pneumatic connection 1

Note on materials

Selected product

541682
Backordered
541682
Festo

branching module MS12N-FRM-G To distribute compressed air without non-return function. Assembly posi...

Mounting positionAny

Standard nominal flow rate in main flow direction 1 -> 225000 l/min ... 42000 l/min

Corrosion resistance class (CRC)2 - Moderate corrosion stres...

Product weight3000 g

Housing materialDie-cast aluminum

Type codeMS12N-FRM

Operating pressure0 bar ... 20 bar

Operating mediumCompressed air as per ISO 85...

Pneumatic connection 1Battery module

Note on materialsFree of copper and PTFE

529555
21 in stock
529555
Festo

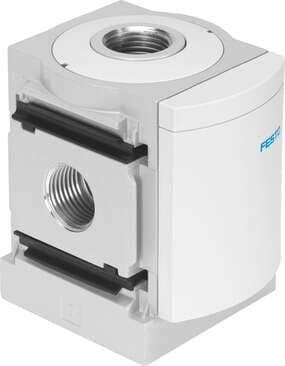

branching module MS4-FRM-1/4 Direction of flow: from left to right. Assembly position: Any, Design s...
