541495 Festo Compressed Air Preparation Units

541495 on Powermatic Associates
Festo

Part#:541495

Alt. Part#:MS12-EM-G

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

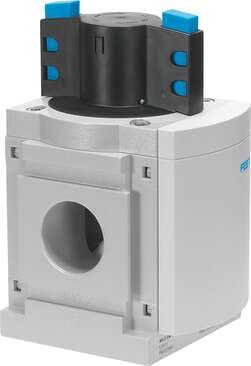

on-off valve MS12-EM-G Manual for pressurising and exhausting pneumatic equipment Design structure: Piston slide, Type of actuation: manual, Exhaust-air function: not throttleable, Type of piloting: direct, Valve function: 3/2 bistable

Product Details

  • Actuation type
    Manual
  • Standard nominal flow rate
    25000 l/min ... 32000 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    Battery module
  • Design
    Piston gate valve
  • Operating pressure
    0 bar ... 20 bar
  • Note on materials
    Free of copper and PTFE
  • Mounting position
    Any
  • Pilot air supply port
    Internal
  • Symbol
    00991309
  • Valve function
    3/2, bistable
  • Type of mounting
    Optionally: With accessories
  • Product weight
    3900 g
  • Pneumatic connection 3
    G1
  • Exhaust air function
    Without flow control option
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-]
  • Pneumatic connection 1
    Battery module
  • Seals material
    NBR
  • Type code
    MS12-EM
  • Type of control
    Direct
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Flow direction
    Non-reversible
  • Housing material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

541495 Related Documents

541495 DataSheet.pdf
