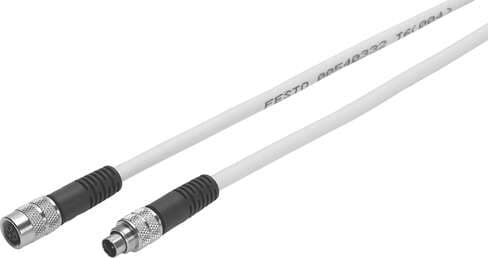

540332 Festo Cable Assemblies

Product Details

• Cable designation
  With accessories
• Electrical connection 1, design
  Round
• Electrical connection 1, occupied pins/wires
  5
• Electrical connection 2, connection type
  Plug
• Electrical connection 2, number of pins/wires
  5
• Electrical connection 2, type of mounting
  Screw-type lock
• Note on acceptable current load at 40°C
  2.3 A for 0.34 mm² 3.6 A for 0.49 mm²
• Bending radius, flexible cable installation
  ≥ 75 mm
• Cable design
  2 x 0.25 mm² + 2 x 0.34 mm² + 0.49 mm² Shielded
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Electrical connection 1, connection technology
  M9x0.5
• Electrical connection 2, design
  Round
• Electrical connection 2, occupied pins/wires
  5
• Surge resistance
  1.5 kV
• Cable diameter
  5.5 mm
• Note on degree of protection
  In mounted state
• Note on materials
  RoHS-compliant
• Housing material
  PA TPE-U(PUR)
• Material of screw-type lock
  Brass, nickel-plated
• Type code
  KVI
Contact durability
500
Electrical connection 1, connection type
Socket
Electrical connection 1, type of mounting
Screw-type lock
Electrical connection 2, connection technology
M9x0.5
DC operating voltage range
0 V ... 30 V
Cable characteristic
Suitable for energy chains
Ambient temperature
-20 °C ... 80 °C
Contamination level
1
Housing colour
Black
Insulating sheath material
TPE-U(PUR)
Product weight
113.8 g
Electrical connection 1, cable outlet
Straight
Electrical connection 2, function
Control side
Electrical connection 2, cable outlet
Straight
Electrical connection 2, connection pattern
00992012
Cable length
2 m
Nominal conductor cross section
0.25 mm² 0.49 mm²
Ambient temperature with flexible cable installation
-5 °C ... 80 °C
Color cable sheath
Light gray
Material of pin contacts
Bronze, gold-plated Brass, gold-plated
Additional functions
Contact 3 of socket 1 mm leading
Electrical connection 1, function
Field device end
Electrical connection 1, number of pins/wires
5
Electrical connection for input 1, connection pattern
00995398
Current rating at 40°C
1.6 A
Connector cable test conditions
Test conditions on request
Degree of protection
IP65 IP67
Material of cable sheath
TPE-U(PUR)
