540210 Festo Pressure Sensors

540210 on Powermatic Associates
Festo

Part#:540210

Alt. Part#:SDE3-D10D-B-FQ4-2P-M8

Manufacturer:Festo

Category:Pressure Sensors

Product Lifecycle:Active

Product description

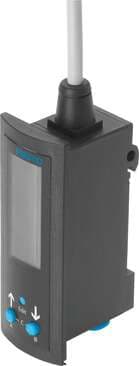

pressure sensor SDE3-D10D-B-FQ4-2P-M8 With M8 plug version. Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Materials note: (* Free of copper and PTFE, * Conforms to RoHS), Measured variable: 2 x relative pressur

Product Details

  • Type code
    SDE3
  • Pressure measuring range initial value
    0 bar
  • Switching output
    2xPNP
  • DC operating voltage range
    15 V ... 30 V
  • Mounting position
    Any
  • Display type
    Illuminated LCD
  • Setting range hysteresis
    0 % ... 90 %
  • Certification
    RCM compliance mark
  • Symbol
    00991165
  • Measured variable
    2 x relative pressure
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Ambient temperature
    0 °C ... 50 °C
  • Max. output current
    100 mA
  • Cable length
    0.3 m
  • Housing material
    PA-reinforced PC
  • Setting range threshold value
    0 % ... 100 %
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Pressure measuring range end value
    10 bar
  • Temperature of medium
    0 °C ... 50 °C
  • Switching element function
    Switchable
  • Type of mounting
    Front panel mounting
  • Product weight
    61 g
  • Protection against tampering
    PIN code
  • Degree of protection
    IP65
  • Method of measurement
    Piezoresistive pressure sensor with display
  • Accuracy in ± % FS
    2 %FS
  • Short-circuit protection
    Pulsed
  • Electrical connection
    4-pin Round design
  • Pneumatic connection
    QS-4
  • Setting options
    Teach-in
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Switching function
    Freely programmable
  • Reproducibility of switching value
    0.3 %
  • Reverse polarity protection
    for all electrical connections
  • Switching status indication
    LCD yellow
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
