540060 Festo Grippers
Product Details
- Cushioning Self-adjusting
- Reset time at room temperature 0.2 s
- Max. stop force 100 N
- Note on materials Free of copper and PTFE RoHS-compliant
- Piston rod material High-alloy steel
- Stroke 4 mm
- Max. impact velocity 2 m/s
- Ambient temperature -10 °C ... 80 °C
- Max. residual energy 0.006 J
- Product weight 5 g
- Housing material High-alloy steel
- Mounting position Any
- Reset time at min. ambient temperature 1 s
- Cushioning length 4 mm
- Size 4
- Position sensing None
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Max. energy absorption per stroke 0.6 J
- Resetting force 0.7 N
- Seals material NBR
- Type code YSR-C
- Symbol 00991497
- Mode of operation Single-acting Pushing
- Max. energy absorption per hour 5600 J
- Type of mounting With lock nut
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
540060 Related Documents
Similar products from: Festo Grippers
Manufacturer warranty
540060 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 540060 with other Grippers products
Cushioning
Reset time at room temper...
Max. stop force
Note on materials
Piston rod material
Stroke
Max. impact velocity
Ambient temperature
Max. residual energy
Product weight
Selected product
540060
Festo
shock absorber YSR-4-4-C For HGDS swivel gripper unit Size: 4, Stroke: 4 mm, Cushioning: self-adjust...
CushioningSelf-adjusting
Reset time at room temperature0.2 s
Max. stop force100 N
Note on materialsFree of copper and PTFE RoHS...
Piston rod materialHigh-alloy steel
Stroke4 mm
Max. impact velocity2 m/s
Ambient temperature-10 °C ... 80 °C
Max. residual energy0.006 J
Product weight5 g
540860
Festo
three-point gripper HGDT-25-A-G1 Sturdy, can be used as internal and external gripper, for position ...
Cushioning-
Reset time at room temperature-
Max. stop force-
Note on materials-
Piston rod material-
Stroke-
Max. impact velocity-
Ambient temperature5 °C ... 60 °C
Max. residual energy-
Product weight-
540869
Festo
three-point gripper HGDT-50-A-G1 Sturdy, can be used as internal and external gripper, for position ...
Cushioning-
Reset time at room temperature-
Max. stop force-
Note on materials-
Piston rod material-
Stroke-
Max. impact velocity-
Ambient temperature5 °C ... 60 °C
Max. residual energy-
Product weight-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.

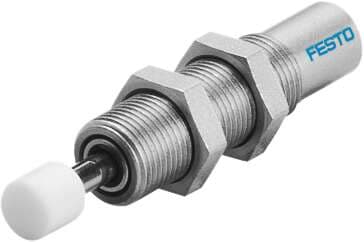

shock absorber YSR-4-4-C For HGDS swivel gripper unit Size: 4, Stroke: 4 mm, Cushioning: self-adjusting, Assembly position: Any, Position detection: No
