537982 Festo Valve Manifold Accessories

537982 on Powermatic Associates
Festo

Part#:537982

Alt. Part#:VMPA2-IC-AP-S-1

Manufacturer:Festo

Category:Valve Manifold Accessories

Product Lifecycle:Active

Product description

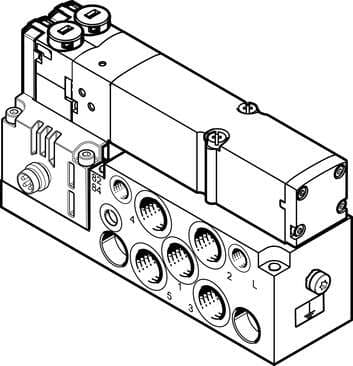

sub-base VMPA2-IC-AP-S-1 for individual valve MPA2 with external pilot air supply. Width: 30,5 mm, Length: 107,3 mm, Grid dimension: 21 mm, Operating pressure: -0,9 - 10 bar, Pilot pressure: 3 - 8 bar

Product Details

  • Length
    107.3 mm
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Pilot pressure MPa
    0.3 MPa ... 0.8 MPa
  • Operating pressure
    -0.09 MPa ... 1 MPa
  • Electrical connection
    M8 Plug
  • Pneumatic connection 2
    G1/8
  • Material of sub-base
    Die-cast aluminum
  • Width dimension
    21 mm
  • Ambient temperature
    -5 °C ... 50 °C
  • Product weight
    233 g
  • Pilot air port 12/14
    M5
  • Note on materials
    RoHS-compliant
  • Width
    30.5 mm
  • Pilot pressure
    3 bar ... 8 bar
  • Sub-base mounting type
    With through-hole
  • Pneumatic connection 4
    G1/8
  • KC characters
    KC EMC
  • Type code
    VMPA2
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Pilot exhaust air port 82/84
    M5
  • Pneumatic connection 3
    G1/8
  • Certification
    c UL us - Recognized (OL)
  • Pneumatic connection 1
    G1/8
  • Pneumatic connection 5
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

537982 Related Documents

537982 DataSheet.pdf
