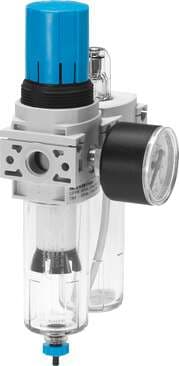

537645 Festo Compressed Air Preparation Units

Name: 537645
Brand: Festo

Part#:537645

Alt. Part#:LFR-1/4-DB-7-O-MINI-H

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

filter regulator LFR-1/4-DB-7-O-MINI-H Output pressure max. 7 bar, without pressure gauge, 40 µ filtration grade. Size: Mini, Width: 44 mm, Series: DB, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°

Product Details

Type code
LFR
Grade of filtration
40 µm
Size
Mini
Actuator lock
Rotary knob with detent
Controller function
With secondary exhausting With return flow function
Operating pressure
0.15 MPa ... 1 MPa
Corrosion resistance class (CRC)
1 - Low corrosion stress
Pneumatic connection 1
G1/4
Compressed air filter material
PE
Series
DB
Design
Filter regulator without pressure gauge
Pressure gauge
G1/8 prepared
Operating medium
Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
Pressure gauge connection
G1/8
Note on materials
RoHS-compliant
Housing material
PA-reinforced
Width
44 mm
Mounting position
Vertical +/- 5°
Max. pressure hysteresis
0.5 bar
Ambient temperature
-5 °C ... 50 °C

Seals material

NBR

Material of bowl

Condensate drain

Semi-automatic

Symbol

00991588

Standard nominal flow rate

≥ 1200 l/min

Temperature of medium

-5 °C ... 50 °C

Pneumatic connection 2

G¼

Rotary knob material

POM

Pressure regulation range

0.5 bar ... 7 bar

Air quality class at the output

Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas

Type of mounting

Optionally: With mounting bracket

Product weight

200 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
