Powermatic Associates Logo

537154 Festo Compressed Air Preparation Units

537154 on Powermatic Associates
Festo

Part#:537154

Alt. Part#:MS12-LFM-G-AUV

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

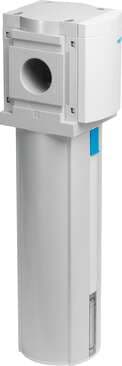

micro filter MS12-LFM-G-AUV 0.01 µm filter, metal bowl guard, fully automatic condensate drain, flow direction from left to right. Series: MS, Size: 12, Design structure: Fibre filter, Grade of filtration: 0,01 µm, Condensate drain: (* fully automatic, *

Product Details

  • Series
    MS
  • Grade of filtration
    0.01 µm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Bowl guard
    Integrated as metal bowl guard
  • Storage temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast aluminum
  • Inspection window material
    PC
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Size
    12
  • Symbol
    00991519
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [1:7:2]
  • Temperature of medium
    5 °C ... 60 °C
  • Type of mounting
    Optionally: With mounting bracket
  • Covering material
    PA
  • Design
    Fiber filter
  • Condensate drain
    Fully automatic Manual, non-detenting
  • Filter efficiency
    99.9999 %
  • Ambient temperature
    6 °C ... 60 °C
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Compressed air filter material
    Borosilicate fiber
  • Seals material
    NBR
  • Type code
    MS12
  • Operating pressure
    2 bar ... 12 bar
  • Max. condensate volume
    400 ml
  • Mounting position
    Vertical +/- 5°
  • Material of bowl
    Wrought aluminum alloy
  • Product weight
    7000 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

537154 Related Documents

537154 DataSheet.pdf
