533425 Festo Quarter Turn Actuators
Part#:533425
Manufacturer:Festo
Alt. Part#:DAPS-0960-090-R-F1012
Product Lifecycle:Active
Get a quick Quote!

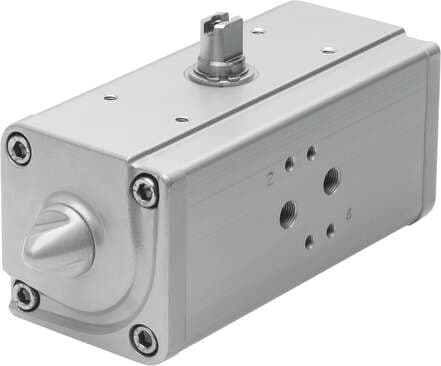

semi-rotary drive DAPS-0960-090-R-F1012 Double-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0960, Flange hole pattern: (* F10, * F12), Swivel angle: 90 deg, End-position adjustment range at 0°:
About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 533425 Festo price in the box on the right side or send a quick quote.
Product Details
- End-position adjusting range at 0° -1 deg ... 9 deg
- Standard connection for valve ISO 5211
- Position sensing None
- Closing direction Clockwise closing
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Swivel angle 90 deg
- Type code DAPS
- Design Scotch yoke system
- Operating pressure 1 bar ... 8.4 bar
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Note on materials RoHS-compliant
- Material number for shaft 1.4305
- Flange hole pattern F10 F12
- Cushioning No cushioning
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- ATEX category gas II 2G
- Explosive ambient temperature -20°C <= Ta <= +60°C
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Shaft connection T36
- Housing material Wrought aluminum alloy
- Size of valve actuator 0960
- Depth shaft connection 38.5 mm
- Mounting position Any
- Symbol 00991265
- ATEX category for dust II 2D
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Torque at nominal operating pressure and 50° swivel angle 480 Nm
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 34.3 l
- Cover material Wrought aluminum alloy
- Shaft material High-alloy steel
- Mode of operation Double-acting
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- Nominal operating pressure 5.6 bar
- Ambient temperature -20 °C ... 80 °C
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Torque at nominal operating pressure and 90° swivel angle 720 Nm
- Pneumatic connection G1/4
- Material of screws High-alloy steel
- Torque at nominal operating pressure and 0° swivel angle 960 Nm
- Product weight 17400 g
- Seals material FPM PUR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
