526324 Festo Pressure Gauges

Name: 526324
Brand: Festo

Part#:526324

Alt. Part#:MA-27-1,0-M5-MPA

Manufacturer:Festo

Category:Pressure Gauges

Product Lifecycle:Active

Product description

pressure gauge MA-27-1,0-M5-MPA With display unit in MPa. Indicating range [MPa]: 0 - 1 MPa, Nominal size of pressure gauge: 27, Design structure: Bourdon-tube pressure gauge, Mounting type: Line installation, Operating medium: (* Inert gases, * Neutral f

Product Details

Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Operating pressure
0 bar ... 10 bar
Pneumatic connection
M5
Housing colour
Black
Symbol
00991463
Type of mounting
Line installation
Degree of protection
IP43
Note on materials
RoHS-compliant
Inspection window material
PS
Pressure gauge nominal size
27
Ambient temperature
0 °C ... 60 °C
Material of screwed trunnion
Brass
Display range
0 MPa ... 1 MPa
Operating medium
Inert gas Neutral liquids
Temperature of medium
0 °C ... 60 °C
Connection position
Centered on rear side
Housing material
PA
Information on operating and pilot media
No acetylene No oxygen
Type code
MA
Design
Bourdon tube pressure gauge

Measurement accuracy class

Intermittent load factor

0.66

Materials in contact with the media

Brass

Product weight

11 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

526324 Related Documents

526324 DataSheet.pdf

Similar products from: Festo Pressure Gauges

356759

Festo

pressure gauge MA-50-16-1/4 Indicating range [bar]: 0 - 16 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 50, Design structure: Bourdon-tube pressure gauge, Mounting type: Line installation

10 in stock

Manufacturer warranty

526324 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 526324 with other Pressure Gauges products

Explosion prevention and ...

Operating pressure

Pneumatic connection

Housing colour

Symbol

Type of mounting

Degree of protection

Note on materials

Inspection window materia...

Pressure gauge nominal si...

Selected product

Backordered

526324

Festo

pressure gauge MA-27-1,0-M5-MPA With display unit in MPa. Indicating range [MPa]: 0 - 1 MPa, Nominal...

Explosion prevention and protectionObserve the information on t...

Operating pressure0 bar ... 10 bar

Pneumatic connectionM5

Housing colourBlack

Symbol00991463

Type of mountingLine installation

Degree of protectionIP43

Note on materialsRoHS-compliant

Inspection window materialPS

Pressure gauge nominal size27

10 in stock

356759

Festo

pressure gauge MA-50-16-1/4 Indicating range [bar]: 0 - 16 bar, Conforms to standard: EN 837-1, Nomi...

Explosion prevention and protectionObserve the information on t...

Operating pressure0 bar ... 16 bar

Pneumatic connection-

Housing colour-

Symbol00991463

Type of mountingLine installation

Degree of protectionIP43

Note on materials-

Inspection window material-

Pressure gauge nominal size50

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

CRDSNU-20-72-P-A-CS

Festo

Festo CRDSNU-20-72-P-A-CS is a pneumatic cylinder designed for mounting via accessories, featuring a high-alloy stainless steel cylinder barrel, cover, and piston rod. It operates within an ambient air temperature range of 0°C to +80°C and has a round cylindrical shape. This stainless steel double-acting single-ended round ISO pneumatic air cylinder falls under the CRDSNU series, with a design based on ISO6432. It includes built-in magnet elastic cushioning at both ends for unlubricated operation and allows for position sensing via a proximity sensor. The cylinder is double-acting, utilizing compressed air as per ISO8573-1;2010 [7;4;4] standards. It features an M8 male threaded rod and a 1/8" BSPP / G1/8" threaded pneumatic port for connections. The operating pressure range is +1 to +10bar, with a bore size of 20mm and a stroke length of 72mm.

0 in stock

RSC RKC 5722-1M

Turck

RSC RKC 5722-1M Turck - RSC RKC 5722-1M DeviceNet™ Cordset, Extension Cordset

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

ZB4BD3

Schneider Electric

Schneider Electric ZB4BD3 is a selector switch belonging to the XB4 sub-range, featuring a head with a standard handle. The bezel of this switch is chromium-plated and made of metal, presenting a round shape. It offers a high degree of protection with ratings of IP69K, NEMA 4X, and NEMA 13, ensuring its suitability for various industrial environments. The mechanical durability of this switch is rated at 1,000,000 operations at no load. It has a diameter of 22 mm and operates in a 3-position stay-put mode, with angular positions set at -45°, 0, and +45°.

0 in stock

RSV RKV 492BA-30M

Turck

RSV RKV 492BA-30M Turck - RSV RKV 492BA-30M FOUNDATION™ fieldbus Cordset, Extension Cordset

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

0 in stock

ZB4BD3

Schneider Electric

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

Relevant products

526388

Verified stock: 0

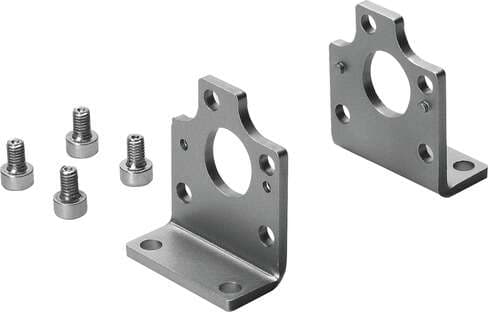

foot mounting HPC-12 for linear drive DGC-G. Size: 12, Assembly position: Any, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Product weight: 41,25 g, Materials note: (* Free of copper and PTFE, * Conforms to RoHS)

Festo

526306

Verified stock: 0

filter LF-QS4-D-5M-MICRO-H Connection plate with push-in connector, semiautomatic condensate drain Size: Micro, Series: D, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: semi-automatic

Festo

526307

Verified stock: 0

filter LF-QS6-D-5M-MICRO Connection plate with push-in connector, manual condensate drain Size: Micro, Series: D, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: manual rotary

Festo

526316

Verified stock: 0

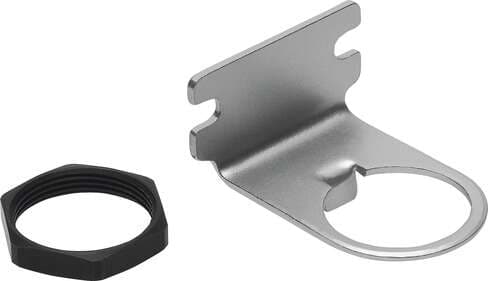

mounting bracket HRS-D-MICRO For pressure regulator combination LRB / LRBS

Festo

526305

Verified stock: 0

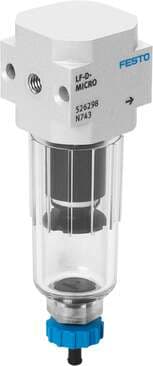

filter LF-QS4-D-5M-MICRO Connection plate with push-in connector, manual condensate drain Size: Micro, Series: D, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: manual rotary
