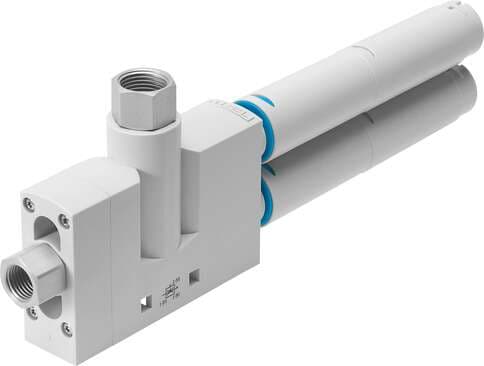

526141 Festo Vacuum Generators

Product Details

• Nominal width of Laval nozzle
  2 mm
• Symbol
  00991489
• Operating pressure for max. vacuum
  3.5 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Product weight
  183 g
• Material of connecting thread
  Wrought aluminum alloy, anodized
• Female nozzle material
  POM
• Type code
  VN
• Operating pressure for max. suction rate
  2 bar
• Max. vacuum
  92 %
• Temperature of medium
  0 °C ... 60 °C
• Pneumatic connection 1
  G1/4
• Housing material
  POM-reinforced
• Width dimension
  24 mm
• Mounting position
  Any
• Ejector characteristics
  High vacuum Standard
• Air supply time at nominal operating pressure
  0.2 s
• Noise level at nominal operating pressure
  63 dB(A)
• Note on materials
  Free of copper and PTFE RoHS-compliant
Design
T-shape
Max. suction rate with respect to atmosphere
98 l/min
Nominal operating pressure
6 bar
Ambient temperature
0 °C ... 60 °C
Type of mounting
With through-hole With accessories
Vacuum connection
G3/8
Muffler material
Die-cast aluminum PU foam
Muffler construction type
Open
Integrated function
Pneumatic muffler open
Operating pressure
1 bar ... 8 bar
Information on operating and pilot media
Operation with oil lubrication not possible
Max. tightening torque
0.8 Nm
Pneumatic connection 3
Pneumatic muffler open
Seals material
NBR
Material of jet nozzle
Wrought aluminum alloy
