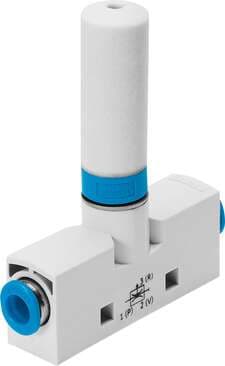

526108 Festo Vacuum Generators

Product Details

• Muffler construction type
  Open
• Design
  T-shape
• Female nozzle material
  POM
• Symbol
  00991488
• Nominal width of Laval nozzle
  0.45 mm
• Mounting position
  Any
• Operating pressure
  1 bar ... 8 bar
• Nominal operating pressure
  6 bar
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Max. tightening torque
  0.5 Nm
• Ambient temperature
  0 °C ... 60 °C
• Width dimension
  10 mm
• Ejector characteristics
  High vacuum Inline
• Operating pressure for max. suction rate
  6.3 bar
• Max. vacuum
  86 %
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Noise level at nominal operating pressure
  53 dB(A)
• Vacuum connection
  QS-4
• Housing material
  POM-reinforced
• Material of pneumatic fitting
  Brass Nickel-plated
Type code
VN
Integrated function
Pneumatic muffler open
Max. suction rate with respect to atmosphere
6.1 l/min
Temperature of medium
0 °C ... 60 °C
Pneumatic connection 1
QS-4
Seals material
NBR
Muffler material
PE
Operating pressure for max. vacuum
6 bar
Air supply time at nominal operating pressure
4.7 s
Type of mounting
With through-hole With accessories
Information on operating and pilot media
Operation with oil lubrication not possible
Product weight
15 g
Note on materials
Free of copper and PTFE RoHS-compliant
Pneumatic connection 3
Pneumatic muffler open
Material of jet nozzle
Wrought aluminum alloy
