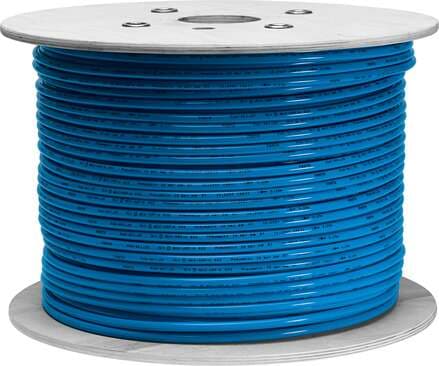

525750 Festo Pneumatic Tubing
Part#:525750
Alt. Part#:PUN-12X2-BL-200
Manufacturer:Festo
Category:Pneumatic Tubing
Product Lifecycle:Active
Product description
plastic tubing PUN-12X2-BL-200 Standard O.D tubing, for QS plug connectors, CN and CK polyurethane fittings (not approved for use in the food industry). Outside diameter: 12 mm, Bending radius relevant for flow rate: 62 mm, Inside diameter: 8 mm, Min. ben
Product Details
- Min. bending radius 33 mm
- Product weight by length 0.0767 kg/m
- Shore hardness D 52 +/-3
- Outside diameter 12 mm
- Temperature-dependent operating pressure -0.95 bar ... 10 bar
- Bending radius relevant for flow rate 62 mm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Inside diameter 8 mm
- Type code PUN
- Tubing characteristics Suitable for energy chains in applications with high cycle rates
- Ambient temperature -35 °C ... 60 °C
- Material of pneumatic tubing TPE-U(PU)
- Pneumatic tubing test conditions Suitability for energy chains: >5 million cycles as per FN 942021
- Certificate issuing authority B 013277 0506 00
- Pneumatic connection For plug connection outside diameter 12 mm
- Note on materials Free of copper and PTFE RoHS-compliant
- Material fire test UL94 HB
- Certification German Technical Control Board (TÜV)
- Color Blue
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
