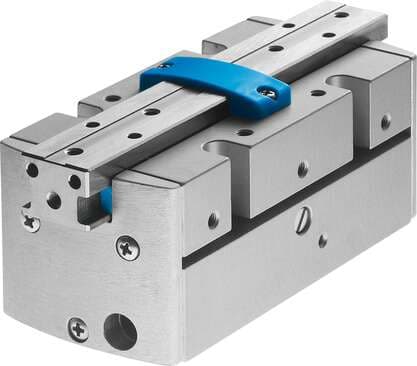

525660 Festo Grippers

Product Details

• Type code
  HGPP
• Position sensing
  For Hall sensor For inductive proximity sensors
• Stroke per gripper jaw
  2 mm
• Mode of operation
  Double-acting
• Maximum torque on gripper jaw, Mz static
  1.5 Nm
• Gripper jaw material
  Wrought aluminum alloy Nickel-plated
• Size
  10
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Gripper function
  Parallel
• Gripping force backup
  During closing
• Min. opening time at 6 bar
  26 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Maximum torque on gripper jaw, My static
  1.5 Nm
• Type of mounting
  With internal thread
• Housing material
  Wrought aluminum alloy Hard-anodized
• Design
  Gear rack/pinion
• Min. closing time at 6 bar
  32 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum force on gripper jaw Fz, static
  40 N
• Pneumatic connection
  M3
Max. interchangeability
0.1 mm
Number of gripper jaws
2
Symbol
00991895
Operating pressure
5 bar ... 8 bar
Ambient temperature
5 °C ... 60 °C
Product weight
127 g
Cover cap material
POM
Max. operating frequency of pneumatic gripper
4 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, Mx static
1.5 Nm
Max. mass per external gripper finger
50 g
Note on materials
Free of copper and PTFE
