525666 Festo Grippers

525666 on Powermatic Associates
Festo

Part#:525666

Alt. Part#:HGPP-32-A-G2

Manufacturer:Festo

Category:Grippers

Product Lifecycle:Active

Product description

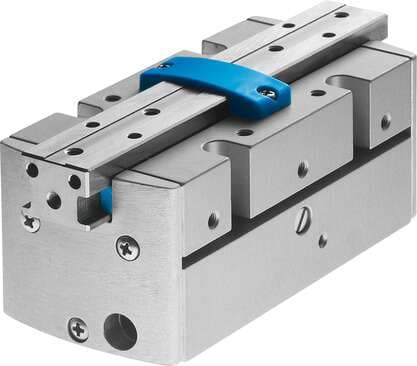

parallel gripper HGPP-32-A-G2 Precise, for position sensing via hall effect sensor or inductive sensors. With gripping force retention when closing...-G2. Size: 32, Stroke per gripper jaw: 12,5 mm, Max. replacement accuracy: 0,1 mm, Repetition accuracy, g

Product Details

  • Size
    32
  • Type code
    HGPP
  • Max. operating frequency of pneumatic gripper
    4 Hz
  • Min. opening time at 6 bar
    103 ms
  • Ambient temperature
    5 °C ... 60 °C
  • Type of mounting
    With internal thread
  • Note on materials
    Free of copper and PTFE
  • Gripper function
    Parallel
  • Symbol
    00991895
  • Min. closing time at 6 bar
    101 ms
  • Maximum force on gripper jaw Fz, static
    720 N
  • Product weight
    1427 g
  • Cover cap material
    POM
  • Gripper jaw material
    Wrought aluminum alloy Nickel-plated
  • Stroke per gripper jaw
    12.5 mm
  • Number of gripper jaws
    2
  • Gripping force backup
    During closing
  • Operating pressure
    5 bar ... 8 bar
  • Maximum torque on gripper jaw, Mx static
    30 Nm
  • Max. mass per external gripper finger
    300 g
  • Maximum torque on gripper jaw, My static
    30 Nm
  • Housing material
    Wrought aluminum alloy Hard-anodized
  • Max. interchangeability
    0.1 mm
  • Mode of operation
    Double-acting
  • Design
    Gear rack/pinion
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Maximum torque on gripper jaw, Mz static
    30 Nm
  • Pneumatic gripper repetition accuracy
    ≤ 0.02 mm
  • Position sensing
    For Hall sensor For inductive proximity sensors
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
