4809122 Festo Ball Valves

Name: 4809122
Brand: Festo

Part#:4809122

Manufacturer:Festo

Alt. Part#:VZBE-2-T-63-T-2-F0507-V15V15

Product Lifecycle:Active

Get a quick Quote!

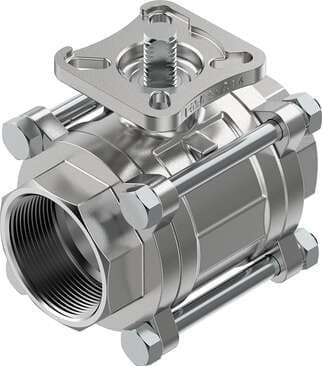

ball valve VZBE-2-T-63-T-2-F0507-V15V15 Stainless steel, 2/2-way, nominal width 2", top flange F0507, PN63, ASME B1.20.1 - NPT. Design structure: 2-way ball valve, Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any, Mounting ty

About the manufacturer: Festo is one of the manufacturers that offers Ball Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 4809122 Festo price in the box on the right side or send a quick quote.

Product Details

Seat seal material
PTFE
Type of mounting
Line installation
Inside diameter
50 mm
Medium
Vapor Neutral liquids
Temperature of medium
-20 °C ... 200 °C
Product weight
3520 g
Sealing principle
Soft
Mounting position
Any
Valve function
2/2
Flow rate Kv
111.8 m³/h
Material number of housing
1.4408
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Design
2-way ball valve
Fitting connection
2 NPT
Nominal width DN
50
Symbol
00991458
Housing material
Cast stainless steel
Ball material
Cast stainless steel
Shaft material
High-alloy stainless steel
Certification
CRN

Actuation type

Mechanical

Switching position indication

Slot direction = flow direction

Nominal pressure of fitting PN

Breakaway torque at differential pressure, nominal pressure, fitting PN

44 Nm

Seals material

FPM PTFE

Material number for ball

1.4408

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Type code

VZBE

Flange hole pattern

F0507

Flow direction

Reversible

Based on norm

ASME B1.20.1 ISO 5211

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Material number for shaft

1.4401

CE marking (see declaration of conformity)

as per EU pressure equipment directive

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
