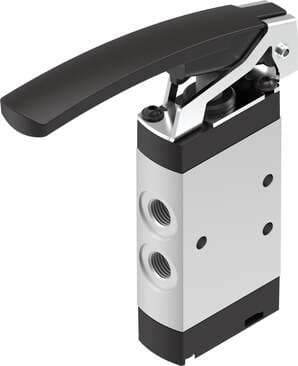

4500005 Festo Mechanical & Manual Valves

Product Details

• Cover material
  PA-reinforced
• Actuation type
  Manual
• Temperature of medium
  -10 °C ... 60 °C
• Pneumatic connection 4
  G1/8
• Lap
  Overlap
• Design
  Piston gate valve
• Sealing principle
  Soft
• Flow direction
  Reversible
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Product weight
  184 g
• Pneumatic connection 1
  G1/8
• Seals material
  NBR
• Operating pressure
  -0.95 bar ... 10 bar
• Standard nominal flow rate
  750 l/min
• Nominal width
  5.2 mm
• Application note
  Operate by hand only
• Type of control
  Direct
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Actuating force
  8 N
• Pilot air port 12/14
  M5
Note on materials
RoHS-compliant
Lever material
PA-reinforced
Pneumatic working port
G1/8
Type code
VHEF
Symbol
00992191
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
1 - Low corrosion stress
Pneumatic connection 2
G1/8
Pneumatic connection 3
G1/8
Valve function
5/2, monostable
Width
20 mm
Reset method
Pneumatic spring
Exhaust air function
With flow control option
Mounting position
Any
Max. switching frequency
0.5 Hz
Ambient temperature
-10 °C ... 60 °C
Type of mounting
With through-hole
Pneumatic connection 5
G1/8
Housing material
Wrought aluminum alloy, anodized
