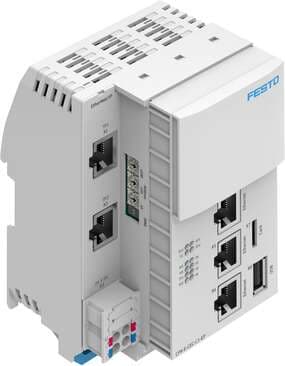

4252744 Festo Programmable Logic Controllers

Product Details

• Type of mounting
  With H-rail
• Ethernet interface, protocol
  EasyIP TCP/IP
• Fieldbus interface 2, connection type
  Socket
• Ethernet interface, transmission rate
  10 Mbit/s 100 Mbit/s
• USB interface
  USB 2.0
• Ethernet interface, function
  Diagnostics Switch
• Ethernet interface, connection pattern
  00995789
• Fieldbus interface 2, type
  Ethernet
• Diagnostics via LED
  Force mode
• Power supply, number of pins/wires
  4
• Buffer time real-time clock
  3 Weeks
• Additional functions
  CODESYS V3 with SoftMotion
• Max. power supply
  8 A
• Storage temperature
  -20 °C ... 70 °C
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Vibration resistance
  Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
• Storage medium
  Micro SD <= 32 GB USB memory stick <= 32 GB
• Intrinsic current consumption at nominal operating voltage for electronics/sensors
  Typically 150 mA
• Fieldbus interface, connection pattern
  00995789
• Fieldbus interface 2, transmission rate
  100 Mbit/s
Fieldbus interface 2, function
Bus connection, forwarding
Fieldbus interface, connection technology
RJ45
Module parameters
Channel alarm bundling Analog module process value representation
Fieldbus interface, max. address volume for outputs
512 byte
Type code
CPX-E
CPU data
512 MB RAM Dual core 766 MHz
Processing time
Approx. 200 µs/1 k instruction
Program memory
12 MB user program
Relative air humidity
95 % Non-condensing
Ambient temperature
-5 °C ... 50 °C
Max. address capacity inputs
64 byte
Dimensions W x L x H
75.9 mm x 124.3 mm x 82.5 mm
Fieldbus interface 2, connection technology
RJ45
Fieldbus interface 2, galvanic isolation
yes
System parameter
Diagnostic memory System start
Fieldbus interface, protocol
EtherNet/IP
Ethernet interface, connection type
2x socket
Nominal operating voltage DC for electronics/sensors
24 V
Fieldbus interface, max. address volume for inputs
512 byte
Function blocks
and others Copying of CPX-E diagnostic trace
Programming software
CODESYS provided by Festo
Degree of protection
IP20
Fieldbus interface, transmission rate
100 Mbit/s
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Power supply, type of connection
Terminal strip
Fieldbus interface, connection type
2x socket
Note on ambient temperature
-5 - 60 °C for vertical installation
Fieldbus interface 2, connection pattern
00995789
Fieldbus interface, function
Bus connection, incoming/forwarding
Permissible voltage fluctuations for electronics/sensors
± 25 %
Power supply, connection technology
Spring-loaded terminal
Ethernet interface, number of poles/wires
8
Fieldbus interface 2, number of poles/wires
8
Max. number of modules
10
Width dimension
18.9 mm
Control elements
DIL switch for RUN/STOP Optional: CDSB operating unit
Flag
120 kB remanent data CODESYS variable concept
Certificate issuing authority
UL E239998
CE marking (see declaration of conformity)
As per EU EMC directive
Max. address capacity outputs
64 byte
Fieldbus interface, type
Ethernet
Housing material
PA
Fieldbus interface 2, protocol
EtherCAT Master
Ethernet interface, connection technology
RJ45
Power supply, connection pattern
00995847
Power supply, function
Electronics and sensors
Power supply, information on conductor diameter
0.2 - 2.5 mm² for flexible conductors without cable end sleeves
Shock resistance
Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
KC characters
KC EMC
Fieldbus interface, number of poles/wires
8
Power supply, conductor diameter
0.2 mm² ... 1.5 mm²
Configuration support
Operator unit CDSB CODESYS V3
IP address setting
DHCP Optional: via CDSB operating unit
Power failure buffering
20 ms
Corrosion resistance class (CRC)
0 - No corrosion stress
Protection against direct and indirect contact
PELV
Product weight
288 g
Fieldbus interface, galvanic isolation
yes
