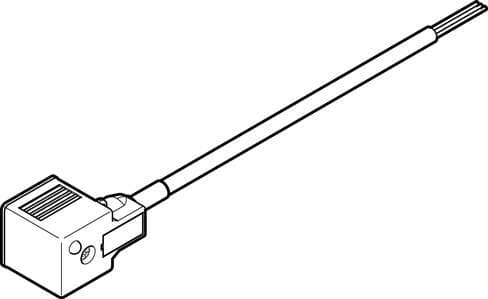

3579468 Festo Cable Assemblies

Product Details

• Product weight
  80 g
• Electrical connection 1, cable outlet
  Angled
• Electrical connection 2, connection type
  Cable
• Nominal operating voltage DC
  230 V
• Surge resistance
  4 kV
• Cable length
  0.6 m
• Note on degree of protection
  In mounted state
• CE marking (see declaration of conformity)
  As per EU low voltage directive As per EU RoHS directive
• Insulating sheath material
  PP
• Electrical connection 1, type of mounting
  On air solenoid valve with M3 central screw
• DC operating voltage range
  0 V ... 230 V
• Current rating at 40°C
  10 A
• Cable diameter tolerance
  ± 0.3 mm
• Ambient temperature with flexible cable installation
  -25 °C ... 80 °C
• Housing material
  TPE-U(PUR)
• Electrical connection 1, design
  Rectangular
• Electrical connection 1, connection technology
  Connection diagram form B as per industrial standard, 11 mm
• Electrical connection for input 1, connection pattern
  00995619
• Electrical connection 2, connection technology
  Open end
• Nominal operating voltage AC
  230 V
Cable diameter
5.9 mm
Contamination level
3
Color cable sheath
Gray
Certification
c CSA us (OL)
Electrical connection 1, connection type
Socket
Electrical connection 1, number of pins/wires
3
Electrical connection 2, occupied pins/wires
3
Protective earth connection
Available
Connector cable test conditions
Test conditions on request
Degree of protection
IP67
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Material of cable sheath
TPE-U(PUR)
Type code
NEBV
Cable designation
Without label holder
Electrical connection 1, function
Field device end
Electrical connection 1, occupied pins/wires
3
Electrical connection 2, function
Control side
Electrical connection 2, number of pins/wires
3
Operating voltage range AC
0 V ... 230 V
Cable characteristic
Standard
Cable design
3 x 0.75 mm²
Ambient temperature
-25 °C ... 80 °C
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Housing colour
Black
