35555 Festo Vacuum Generators

35555 on Powermatic Associates
Festo

Part#:35555

Alt. Part#:VAD-ME-1/4

Manufacturer:Festo

Category:Vacuum Generators

Product Lifecycle:Active

Product description

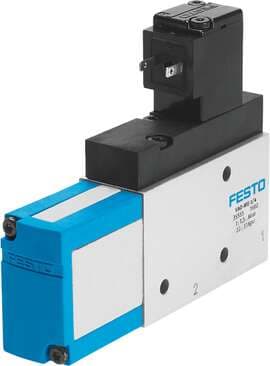

vacuum generator VAD-ME-1/4 With integrated solenoid valve Nominal size, Laval nozzle: 1,4 mm, Assembly position: Any, Ejector characteristic: High vacuum, Integrated function: Electrical on-off valve, Design structure: T-shaped

Product Details

  • Mounting position
    Any
  • Symbol
    00991492
  • Operating pressure
    1.5 bar ... 8 bar
  • Electrical connection
    Plug
  • Vacuum connection
    G1/4
  • Nominal width of Laval nozzle
    1.4 mm
  • Ejector characteristics
    High vacuum
  • Duty cycle
    100%
  • Ambient temperature
    0 °C ... 40 °C
  • Housing material
    Aluminum
  • Type code
    VAD
  • Integrated function
    Shut off valve, electric
  • Temperature of medium
    0 °C ... 40 °C
  • Design
    T-shape
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Degree of protection
    IP65
  • Type of mounting
    With internal thread
  • Max. vacuum
    85 %
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Product weight
    212 g
  • Pneumatic connection 1
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

35555 Related Documents

35555 DataSheet.pdf
