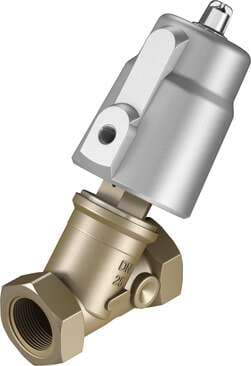

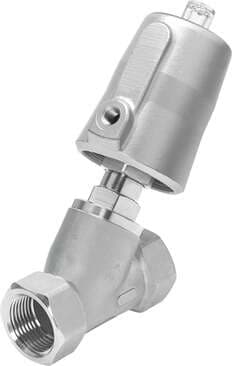

Festo 3540796 angle seat valve VZXF-L-M22C-M-A-G2-430-H3ALV-80-V Pneumatically actuated angle seat valve in red brass. Over seat version, safety position closed, G thread, vacuum, nominal width 2". Design structure: Poppet valve with piston actuator, Type of actuation:
Festo

Part#:3540796

Manufacturer:Festo

Alt. Part#:VZXF-L-M22C-M-A-G2-430-H3ALV-80-V

Product Lifecycle:Active

Get a quick Quote!

angle seat valve VZXF-L-M22C-M-A-G2-430-H3ALV-80-V Pneumatically actuated angle seat valve in red brass. Over seat version, safety position closed, G thread, vacuum, nominal width 2". Design structure: Poppet valve with piston actuator, Type of actuation:

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 3540796 Festo price in the box on the right side or send a quick quote.

Product Details

  • Type code
    VZXF
  • Mounting position
    Any
  • Medium pressure
    -0.9 bar ... 0 bar
  • Reset method
    Mechanical spring
  • Ambient temperature
    -10 °C ... 60 °C
  • Valve housing material
    Red brass
  • Drive housing material
    Aluminum
  • Nominal pressure of fitting PN
    16
  • Medium
    Vapor Filtered compressed air, 200 µm filter mesh
  • Symbol
    00991367
  • Temperature of medium
    -10 °C ... 80 °C
  • Product weight
    2900 g
  • Sealing principle
    Soft
  • Valve function
    2/2, closed, monostable
  • Pneumatic connection
    Internal thread G1/8
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Flow rate Kv
    40 m³/h
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Actuation type
    Pneumatic
  • Type of mounting
    Line installation
  • Nominal width
    43 mm
  • Type of control
    Externally controlled
  • Max. viscosity
    600 mm²/s
  • Material number, fitting housing
    CC499K
  • Seat seal material
    FPM
  • Design
    Poppet valve with piston actuator
  • Cable connection
    Threaded sleeve G2 as per DIN ISO 228
  • Flow direction
    Above valve seat, for gaseous media
  • Exhaust air function
    Without flow control option
  • Operating pressure
    6 bar ... 10 bar
  • Spindle seal material
    FPM
  • Corrosion resistance class (CRC)
    0 - No corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 3540796 Specs

3540796 3540796 DataSheet.pdf

Manufacturer warranty
