3535620 Festo Process & Media Valves

Name: 3535620
Brand: Festo

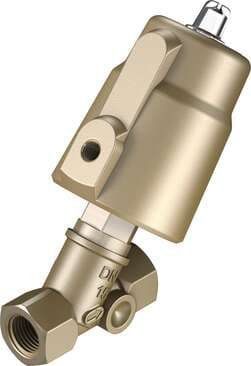

Festo 3535620 angle seat valve VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16 Pneumatically actuated angle seat valve in red brass. Under seat version, safety position closed, G thread, nominal width 1/2". Design structure: Poppet valve with piston actuator, Type of actuation:

Part#:3535620

Manufacturer:Festo

Alt. Part#:VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16

Product Lifecycle:Active

Get a quick Quote!

angle seat valve VZXF-L-M22C-M-B-G12-120-M1-H3B1T-50-16 Pneumatically actuated angle seat valve in red brass. Under seat version, safety position closed, G thread, nominal width 1/2". Design structure: Poppet valve with piston actuator, Type of actuation:

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 3535620 Festo price in the box on the right side or send a quick quote.

Product Details

Design
Poppet valve with piston actuator
Mounting position
Any
Cable connection
Threaded sleeve G1/2 as per DIN ISO 228
Nominal width
12 mm
Max. viscosity
600 mm²/s
Flow rate Kv
3.7 m³/h
Spindle seal material
PTFE
Actuation type
Pneumatic
Nominal pressure of fitting PN
16
Type of control
Externally controlled
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Valve housing material
Red brass
Product weight
1200 g
Flow direction
Under valve seat, for gaseous and liquid media
Pneumatic connection
Internal thread G1/8
Ambient temperature
-10 °C ... 60 °C
Seat seal material
PTFE
Drive housing material
Brass
Sealing principle
Soft
Medium pressure
0 bar ... 16 bar

Reset method

Mechanical spring

Symbol

00991367

Medium

Vapor Neutral liquids

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Type code

VZXF

Type of mounting

Line installation

Valve function

2/2, closed, monostable

Exhaust air function

Without flow control option

Operating pressure

6 bar ... 10 bar

Temperature of medium

-40 °C ... 200 °C

Material number, fitting housing

CC499K

Corrosion resistance class (CRC)

1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Relevant products

174309

Verified stock: 9
