35310 Festo Flow Control Valves

35310 on Powermatic Associates
Festo

Part#:35310

Alt. Part#:GRE-3/8

Manufacturer:Festo

Category:Flow Control Valves

Product Lifecycle:Active

Product description

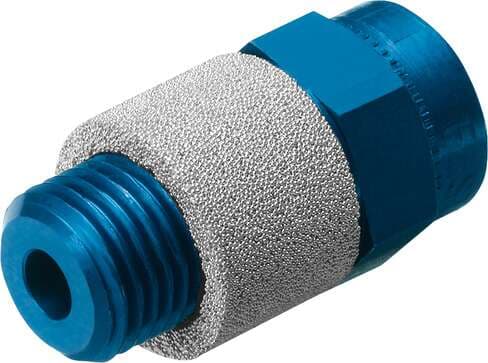

exhaust air flow control valve GRE-3/8 With sintered metal silencer. Valve function: Flow control – silencer function, Pneumatic connection, port 1: G3/8, Adjusting element: Slotted head screw, Mounting type: Threaded, Standard nominal flow rate in flow

Product Details

  • Valve function
    Sound pressure flow control function
  • Selection of additional function
    With pneumatic muffler
  • Type of mounting
    Screw-in
  • Standard nominal flow rate in flow control direction
    2000 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Seals material
    NBR
  • Ambient temperature
    -10 °C ... 70 °C
  • Temperature of medium
    -10 °C ... 70 °C
  • Note on materials
    RoHS-compliant
  • Operating pressure
    0 bar ... 10 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Max. tightening torque
    15 Nm
  • Type code
    GRE
  • Adjusting element
    Slotted screw
  • Pneumatic connection 1
    G3/8
  • Mounting position
    Any
  • Product weight
    50 g
  • Material of adjusting screw
    Brass
  • Standard flow rate 6->0 bar
    3 l/min ... 2000 l/min
  • Symbol
    00991451
  • Material of screwed trunnion
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

35310 Related Documents

35310 DataSheet.pdf

Manufacturer warranty

35310 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Festo

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
