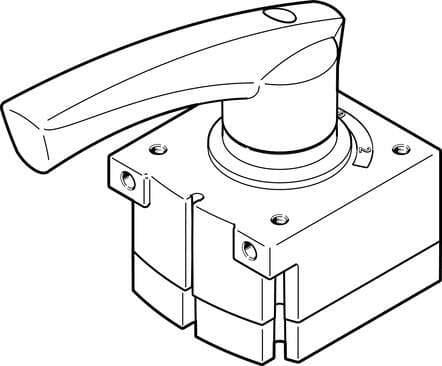

3515286 Festo Mechanical & Manual Valves

Product Details

• Actuation type
  Manual
• Type code
  VHER
• Nominal width
  8 mm
• Symbol
  00995943
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Temperature of medium
  -20 °C ... 80 °C
• Type of mounting
  Optionally: With through-hole
• Width
  56 mm
• Exhaust air function
  With flow control option
• Underlap
  yes
• Product weight
  510 g
• Pneumatic connection 4
  G1/4
• Valve function
  4/3, pressurized
• Pneumatic working port
  G1/4
• Application note
  Operate by hand only
• Type of control
  Direct
• Switching position indication
  with accessories
• Ambient temperature
  -20 °C ... 80 °C
• Pneumatic connection 1
  G1/4
• Note on materials
  Free of copper and PTFE RoHS-compliant
Housing material
Die-cast aluminum
Operating pressure
0 bar ... 10 bar
Sealing principle
Hard
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 2
G¼
Seals material
NBR
Standard nominal flow rate
1500 l/min
Information on operating pressure
Vacuum operation at connection 3 only In dual pressure mode, the pressure at connection 1 must be higher than at connection 3.
Design
Rotary gate valve
Flow direction
Non-reversible
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Actuating torque
2 Nm
Pneumatic connection 3
G1/4
Lever material
Die-cast aluminum
