3013389 Festo Electric Actuators

3013389 on Powermatic Associates
Festo

Part#:3013389

Alt. Part#:EGC-70-200-BS-10P-KF-0H-ML-GK

Manufacturer:Festo

Category:Electric Actuators

Product Lifecycle:Active

Product description

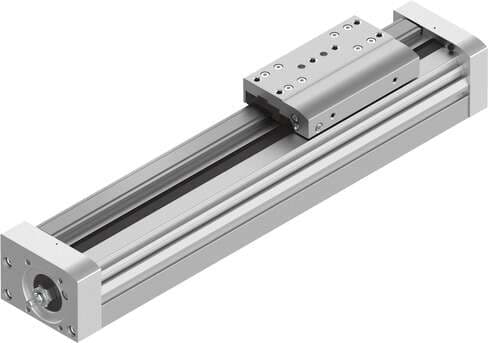

spindle axis EGC-70-200-BS-10P-KF-0H-ML-GK With recirculating ball bearing guide Working stroke: 200 mm, Size: 70, Stroke reserve: 0 mm, Spindle diameter: 12 mm, Spindle pitch: 10 mm/U

Product Details

  • Spindle pitch
    10 mm/U
  • Size
    70
  • Screw diameter
    12 mm
  • Motor type
    Stepper motor Servo motor
  • Max. speed
    0.5 m/s ... 0.75 m/s
  • 2nd moment of area Ix
    419000 mm⁴
  • Max. radial force on actuator shaft
    220 N
  • Moment compensator material
    Wrought aluminum alloy Anodized
  • Working stroke
    200 mm
  • Type code
    EGC
  • Design
    Electromechanical linear axis with ball screw
  • Duty cycle
    100%
  • 2nd moment of area Iy
    578000 mm⁴
  • Max. feed force Fx
    400 N
  • Feed constant
    10 mm/U
  • Slide carriage material
    Steel
  • Slide material
    Wrought aluminum alloy Anodized
  • Stroke reserve
    0 mm
  • Spindle type
    Ball screw
  • Guide
    Recirculating ball bearing guide
  • Degree of protection
    IP40
  • 2nd moment of area Iz
    419000 mm⁴
  • Max. force Fy
    1850 N
  • Material of end caps
    Wrought aluminum alloy Anodized
  • Guide rail material
    Steel
  • Spindle nut material
    Steel
  • Mounting position
    Any
  • Max. acceleration
    15 m/s²
  • Ambient temperature
    -10 °C ... 60 °C
  • Max. torque Mx
    16 Nm
  • Torsion moment of inertia It
    88000 mm⁴
  • Profile material
    Wrought aluminum alloy Anodized
  • Spindle material
    Steel
  • Symbol
    00991211
  • Repetition accuracy
    ±0.02 mm
  • Max. force Fz
    1850 N
  • Mass moment of inertia JH per meter of stroke
    0.142 kgcm²
  • Note on materials
    RoHS-compliant
  • Drive cover material
    Wrought aluminum alloy Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3013389 Related Documents

3013389 DataSheet.pdf

Similar products from: Festo Electric Actuators

574093 on Powermatic Associates

574093

Festo

electric cylinder ESBF-BS-63-100-5P With ball screw, electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. Size: 63, Stroke: 100 mm, Piston rod thread: M16x1,5, Reversing backlash: 30 µm, Spindle

7 in stock
8062769 on Powermatic Associates

8062769

Festo

toothed belt axis ELGC-TB-KF-45-300 Effective diameter of drive pinion: 19,1 mm, Working stroke: 300 mm, Size: 45, Stroke reserve: 0 mm, Toothed-belt stretch: 0,187 %

2 in stock
2215385 on Powermatic Associates

2215385

Festo

electric cylinder ESBF-BS-40-200-5P With ball screw, electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. Size: 40, Stroke: 200 mm, Piston rod thread: M12x1,25, Reversing backlash: 30 µm, Spindle

1 in stock

Manufacturer warranty

3013389 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 3013389 with other Electric Actuators products
