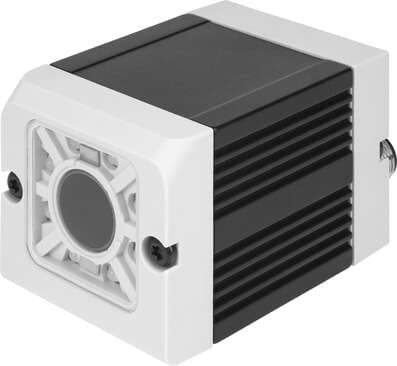

2930238 Festo Electronic Components

Product Details

• CE marking (see declaration of conformity)
  As per EU EMC directive
• Sensor type
  Monochrome
• Max. number of test criteria/detectors
  2
• Type code
  SBSI
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Lens attachment
  Integrated optics
• Max. no. of inspection programs/jobs
  8
• Typical cycle time
  1D bar code: 30 ms 2D code: 40 ms
• Ethernet, data transmission speed
  100 Mbit/s
• Switching level
  Signal 0: <= 3 V Signal 1: >= UB - 1 V
• KC characters
  KC EMC
• Focal length
  6 mm
• Sensor resolution
  736 x 480 pixels (WideVGA)
• Type of light
  Infrared LED
• Information on Ethernet, connection technology
  Socket 4-pin
• Electrical connection
  12-pin Plug
• Switching input
  PNP/NPN switchable
• Short-circuit protection
  For all electrical connections
• Dimensions W x L x H
  45 mm x 45 mm x 76.7 mm
• Cover material
  ABS-reinforced
Wavelength
880 nm
Working distance
6 mm - infinite
Lighting type
Integrated
Function of detectors/characteristics
EAN PDF 417
Serial interface, connection technology
Plug 5-pin
Number of selectable digital inputs/outputs
2
Switching output
PNP/NPN switchable
Current consumption with load-free outputs
200 mA
Storage temperature
-20 °C ... 60 °C
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Vision sensor version
Code reader
Focus setting
With adjusting screw
Field of view
min. 5 x 4 mm
Frame rate (full image)
50 fps
Serial interface, type
RS 232 / RS 422
Number of digital inputs
2
Max. output current
50 mA
Ambient temperature
0 °C ... 50 °C
Degree of protection
IP67
Note on materials
RoHS-compliant
Ethernet, supported protocols
Ethernet/IP TCP/IP
Number of digital outputs
4
Nominal operating voltage DC
24 V
Permissible voltage fluctuations
-25 %/+10 %
Product weight
160 g
Vibration resistance
as per EN 60068-2-6
Max. current consumption
550 mA
Housing material
Wrought aluminum alloy, anodized
