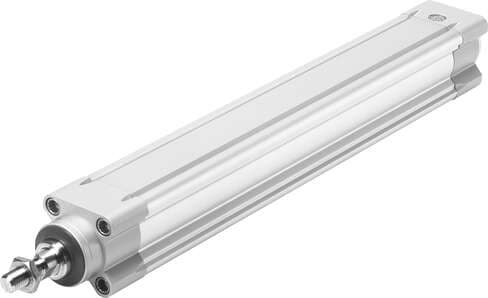

2295383 Festo Electric Actuators

Product Details

• Piston rod thread
  M16x1.5
• Max. angle of rotation of the piston rod +/-
  0.15 deg
• Motor type
  Stepper motor Servo motor
• Size
  50
• Screw diameter
  20 mm
• Based on norm
  ISO 15552
• Position sensing
  For proximity sensor
• Repetition accuracy
  ±0.05 mm
• Type code
  ESBF
• Design
  Electric actuator with lead screw spindle
• Protection against torsion/guide
  With plain-bearing guide
• Stroke
  200 mm
• Spindle pitch
  4 mm/U
• Mounting position
  Any
• Spindle type
  Lead screw
• Duty cycle
  100%
• Reversing backlash
  100 µm
• Piston rod end
  External thread
• Max. acceleration
  2.5 m/s²
• Degree of protection
  IP40
Symbol
00991941
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-20 °C ... 60 °C
Max. driving torque
4.8 Nm
Guide value for payload, vertical
160 kg
Mass moment of inertia JO
0.1407 kgcm²
Interface code, actuator
D50
Max. speed
0.2 m/s
Max. feed force Fx
1600 N
Mass moment of inertia JL per kg of payload
0.004 kgcm²
Additional moving mass per 10 mm stroke
13 g
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
For use in the food industry
See supplementary material information
Ambient temperature
0 °C ... 50 °C
No-load driving torque
0.3 Nm
Additional weight per 10 mm stroke
67 g
Cover material
Smooth anodized
Spindle nut material
Roller bearing steel
Relative air humidity
0 - 95 %
Max. radial force on actuator shaft
300 N
Mass moment of inertia JH per meter of stroke
1.2382 kgcm²
Moving mass at 0 mm stroke
532 g
Type of mounting
With internal thread or accessory
Material of screws
Steel, galvanized
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Guide value for payload, horizontal
160 kg
Basic weight with 0 mm stroke
1716 g
Piston rod material
High-alloy stainless steel
Spindle material
Roller bearing steel
