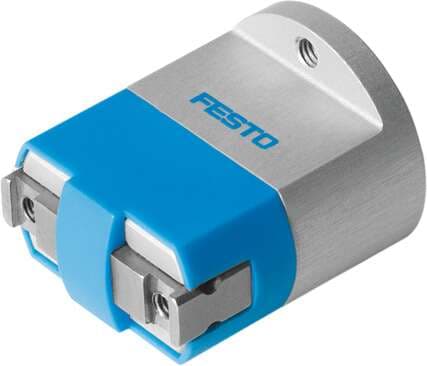

197564 Festo Grippers

Product Details

• Design
  Inclined plane
• Gripping force per gripper jaw at 6 bar, opening
  8 N
• Product weight
  18 g
• Max. interchangeability
  0.2 mm
• Gripper function
  Parallel
• Total gripping force at 6 bar, closing
  16 N
• Min. opening time at 6 bar
  1.9 ms
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Maximum force on gripper jaw Fz, static
  10 N
• Type of mounting
  With internal thread
• Stroke per gripper jaw
  2 mm
• Type code
  HGPM
• Position sensing
  None
• Max. operating frequency of pneumatic gripper
  4 Hz
• Operating pressure
  4 bar ... 8 bar
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mz static
  0.1 Nm
• Cover cap material
  POM
• Housing material
  Wrought aluminum alloy Anodized
• Rotational symmetry
  0.15 mm
Number of gripper jaws
2
Symbol
00991898
Min. closing time at 6 bar
4.1 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, My static
0.1 Nm
Note on materials
Free of copper and PTFE
Gripper jaw material
High-alloy steel
Size
8
Pneumatic gripper repetition accuracy
≤ 0.05 mm
Mode of operation
Single-acting Closed
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum torque on gripper jaw, Mx static
0.1 Nm
Pneumatic connection
M3
