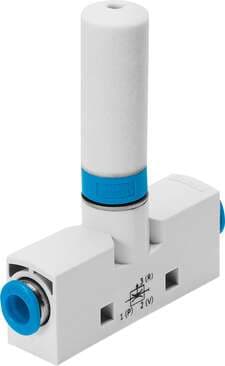

193541 Festo Vacuum Generators

Product Details

• Width dimension
  14 mm
• Mounting position
  Any
• Symbol
  00991488
• Max. vacuum
  86 %
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Type of mounting
  With through-hole With accessories
• Material of connecting thread
  Brass, nickel-plated
• Housing material
  POM-reinforced
• Type code
  VN
• Ejector characteristics
  High vacuum Inline
• Operating pressure for max. suction rate
  7 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Noise level at nominal operating pressure
  59 dB(A)
• Vacuum connection
  QS-6
• Female nozzle material
  POM
• Nominal width of Laval nozzle
  0.7 mm
• Design
  T-shape
• Operating pressure
  1 bar ... 8 bar
• Max. suction rate with respect to atmosphere
  13.5 l/min
• Temperature of medium
  0 °C ... 60 °C
Max. tightening torque
0.5 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Material of pneumatic fitting
Brass Nickel-plated
Muffler construction type
Open
Integrated function
Pneumatic muffler open
Nominal operating pressure
6 bar
Corrosion resistance class (CRC)
1 - Low corrosion stress
Pneumatic connection 1
QS-6
Pneumatic connection 3
Pneumatic muffler open
Material of jet nozzle
Wrought aluminum alloy
Operating pressure for max. vacuum
5.8 bar
Air supply time at nominal operating pressure
2.1 s
Ambient temperature
0 °C ... 60 °C
Product weight
24 g
Seals material
NBR
Muffler material
PE
