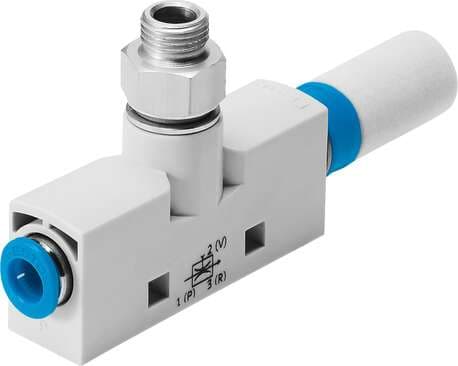

193528 Festo Vacuum Generators

Product Details

• Ejector characteristics
  High vacuum Standard
• Mounting position
  Any
• Operating pressure for max. suction rate
  3.1 bar
• Operating pressure for max. vacuum
  4.5 bar
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Pneumatic connection 3
  Pneumatic muffler open
• Seals material
  NBR
• Material of jet nozzle
  Wrought aluminum alloy
• Operating pressure
  1 bar ... 8 bar
• Air supply time at nominal operating pressure
  1.1 s
• Temperature of medium
  0 °C ... 60 °C
• Vacuum connection
  G1/8
• Female nozzle material
  POM
• Type code
  VN
• Design
  T-shape
• Nominal operating pressure
  6 bar
• Information on operating and pilot media
  Operation with oil lubrication not possible
• Product weight
  26 g
• Material of connecting thread
  Wrought aluminum alloy Brass, nickel-plated
• Material of pneumatic fitting
  Brass Nickel-plated
Nominal width of Laval nozzle
0.95 mm
Muffler construction type
Open
Integrated function
Pneumatic muffler open
Max. vacuum
89 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
0 °C ... 60 °C
Pneumatic connection 1
QS-6
Note on materials
Free of copper and PTFE RoHS-compliant
Muffler material
PE
Width dimension
14 mm
Symbol
00991489
Max. suction rate with respect to atmosphere
25 l/min
Max. tightening torque
0.5 Nm
Noise level at nominal operating pressure
74 dB(A)
Type of mounting
With through-hole With accessories
Housing material
POM-reinforced
