190864 Festo Stop Valves (non-return)

190864 on Powermatic Associates
Festo

Part#:190864

Alt. Part#:HB-1/4-QS-5/16-U

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

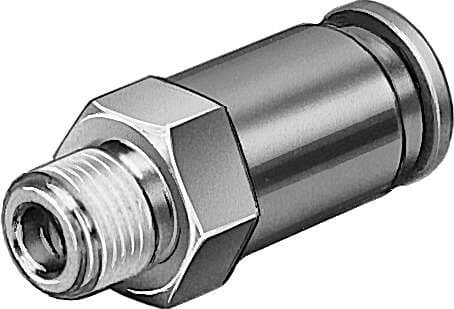

non-return valve HB-1/4-QS-5/16-U Flow rate from the QS plug connector to the male thread. Valve function: Non-return function, Pneumatic connection, port 1: QS-5/16, Pneumatic connection, port 2: 1/4 NPT, Mounting type: Threaded, Standard nominal flow

Product Details

  • Pneumatic connection 1
    QS-5/16
  • Housing material
    Brass
  • Ambient temperature
    0 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Valve function
    Non-return function
  • Standard nominal flow rate
    739 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Pneumatic connection 2
    1/4 NPT
  • Operating pressure
    -1 bar ... 10 bar
  • Min. differential pressure, opening
    0.1 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type code
    HB
  • Type of mounting
    Screw-in
  • Symbol
    00991455
  • Product weight
    24 g
  • Min. differential pressure, closing
    0.2 bar

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
