190856 Festo Stop Valves (non-return)
Part#:190856
Alt. Part#:HA-1/2-QS-3/8-U
Manufacturer:Festo
Category:Stop Valves (non-return)
Product Lifecycle:Active
Product description

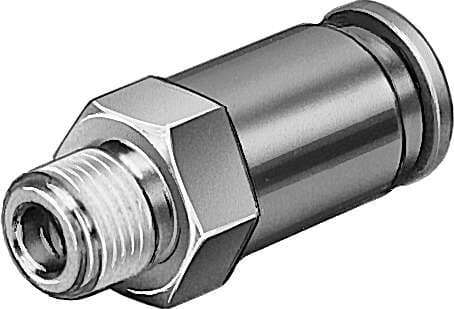

non-return valve HA-1/2-QS-3/8-U Flow rate from the male thread to the QS plug connector. Valve function: Non-return function, Pneumatic connection, port 1: 1/2 NPT, Pneumatic connection, port 2: QS-3/8, Mounting type: Threaded, Standard nominal flow ra
Product Details
- Pneumatic connection 2 QS-3/8
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type code HA
- Type of mounting Screw-in
- Operating pressure -1 bar ... 10 bar
- Product weight 67 g
- Valve function Non-return function
- Standard nominal flow rate 1800 l/min
- Housing material Brass
- Note on materials RoHS-compliant
- Pneumatic connection 1 1/2 NPT
- Symbol 00991455
- Min. differential pressure, closing 0.2 bar
- Ambient temperature 0 °C ... 60 °C
- Min. differential pressure, opening 0.1 bar
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
