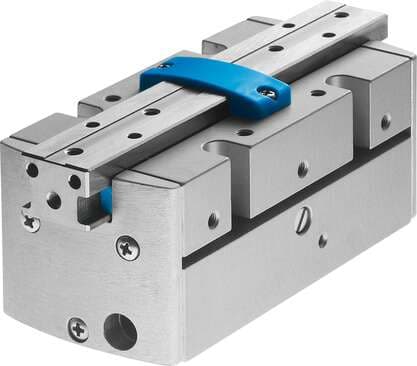

187869 Festo Grippers

Product Details

• Size
  12
• Mode of operation
  Double-acting
• Symbol
  00991895
• Min. opening time at 6 bar
  37 ms
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, My static
  3 Nm
• Product weight
  173 g
• Housing material
  Wrought aluminum alloy Hard-anodized
• Gripper function
  Parallel
• Gripping force backup
  During closing
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum torque on gripper jaw, Mx static
  3 Nm
• Pneumatic connection
  M3
• Cover cap material
  POM
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Design
  Gear rack/pinion
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Max. mass per external gripper finger
  100 g
• Gripper jaw material
  Wrought aluminum alloy Nickel-plated
Stroke per gripper jaw
2.5 mm
Type code
HGPP
Position sensing
For Hall sensor For inductive proximity sensors
Max. operating frequency of pneumatic gripper
4 Hz
Note on materials
Free of copper and PTFE
Max. interchangeability
0.1 mm
Number of gripper jaws
2
Operating pressure
5 bar ... 8 bar
Min. closing time at 6 bar
40 ms
Maximum force on gripper jaw Fz, static
70 N
Maximum torque on gripper jaw, Mz static
3 Nm
Type of mounting
With internal thread
