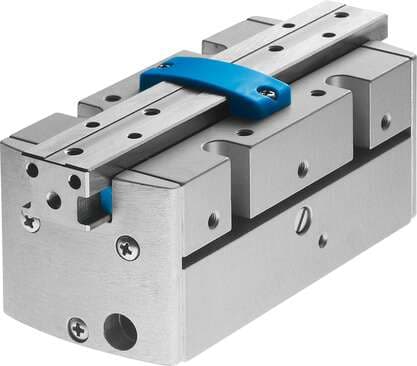

187868 Festo Grippers

Product Details

• Type code
  HGPP
• Mode of operation
  Double-acting
• Symbol
  00995947
• Maximum force on gripper jaw Fz, static
  70 N
• Max. mass per external gripper finger
  100 g
• Product weight
  173 g
• Gripper jaw material
  Wrought aluminum alloy Nickel-plated
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Position sensing
  For Hall sensor For inductive proximity sensors
• Min. closing time at 6 bar
  70 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With internal thread
• Size
  12
• Number of gripper jaws
  2
• Design
  Gear rack/pinion
• Operating pressure
  5 bar ... 8 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum torque on gripper jaw, Mx static
  3 Nm
• Housing material
  Wrought aluminum alloy Hard-anodized
• Max. interchangeability
  0.1 mm
Gripping force backup
On opening
Max. operating frequency of pneumatic gripper
4 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, My static
3 Nm
Cover cap material
POM
Stroke per gripper jaw
2.5 mm
Gripper function
Parallel
Min. opening time at 6 bar
30 ms
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
3 Nm
Note on materials
Free of copper and PTFE
Pneumatic connection
M3
